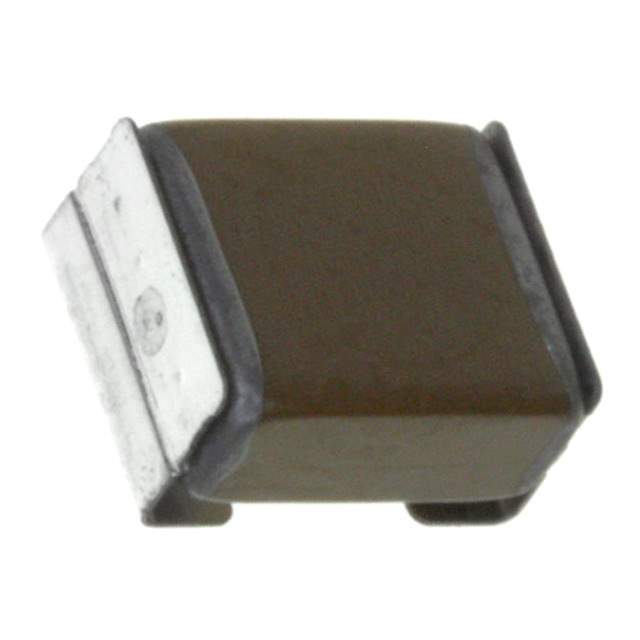

CKG57KX7S2A156M335JJ Real Image
Same model may have multiple batches, images only for reference.

CKG57KX7S2A156M335JJ

Part No CKG57KX7S2A156M335JJ
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 15UF 100V X7S SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 27 Weeks
Features 15 µF ±20% 100V Ceramic Capacitor X7S SMD, J-Lead
Manufacturer TDK Corporation
Series MEGACAP, CKG
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount, MLCC
Package SMD, J-Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 445-10470-6, CKG57KX7S2A156MT0Y9W, 445-10470-2, 445-10470-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915377-CKG57KX7S2A156M335JJ
Ultra Librarian 3D Model Ultra Librarian CKG57KX7S2A156M335JJ CAD Model

Description

The TDK Corporation MEGACAP CKG57KX7S2A156M335JJ is a 15 µF ±20% 100V Ceramic Capacitor X7S SMD, J-Lead that comes in a surface mount, MLCC package.

  • Capacitance: 15 µF ±20%
  • Voltage: 100V
  • Material: Ceramic Capacitor X7S
  • Mounting: SMD, J-Lead
  • Package: Surface Mount, MLCC
  • Operating Temperature Range: -55°C to 125°C
  • Series: CKG
  • Popularity: High
  • Package Type: Reel - TR
  • Quantity per Package: 1000
  • Estimated Production Lead Time: 27 weeks
  • REACH: Unaffected
  • ECCN: EAR99
