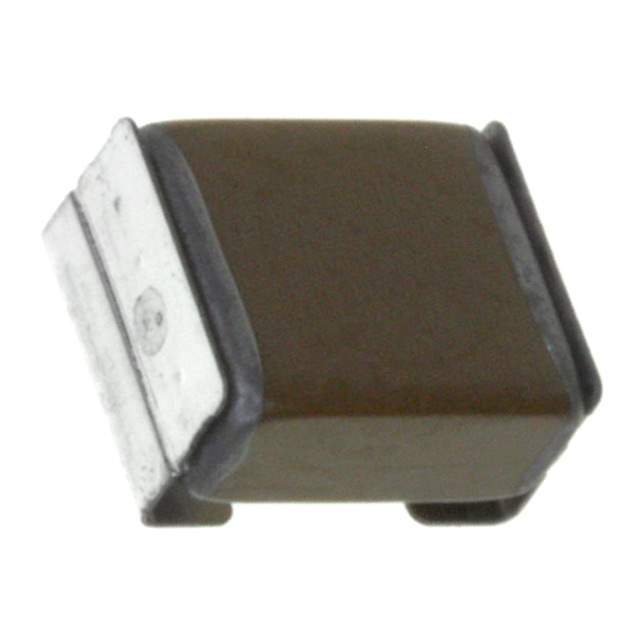

The CKG57KX7R2A475MT009W is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are widely used in electronic circuits for various applications, including decoupling, bypassing, filtering, and energy storage.

Applications

• Decoupling Capacitors
• Bypass Capacitors
• Filtering
• Smoothing
• Voltage Regulation

Features

• Capacitance: 4.7µF
• Voltage Rating: 100V DC
• Dielectric Material: X7R
• Case Size: 2220 (5750 Metric)
• Tolerance: ±20%
• Operating Temperature Range: -55°C to +125°C
• RoHS Compliant

Benefits

• Provides stable capacitance over a wide temperature range (X7R dielectric)
• Suitable for high-voltage applications (100V DC rating)
• Offers high volumetric efficiency (high capacitance in a small package)
• Reduces noise and voltage fluctuations in electronic circuits
• Ensures reliable operation in harsh environments

Additional Details

X7R dielectric capacitors offer a good balance of capacitance stability and temperature performance. They are suitable for applications where capacitance variation with temperature is not critical. The 2220 case size refers to the physical dimensions of the capacitor (5.7mm x 5.0mm). Always refer to the manufacturer's datasheet for detailed specifications, including ESR (Equivalent Series Resistance), ESL (Equivalent Series Inductance), and ripple current ratings. The CKG series is designed for general-purpose applications. The MT in the part number usually refers to tape and reel packaging.
