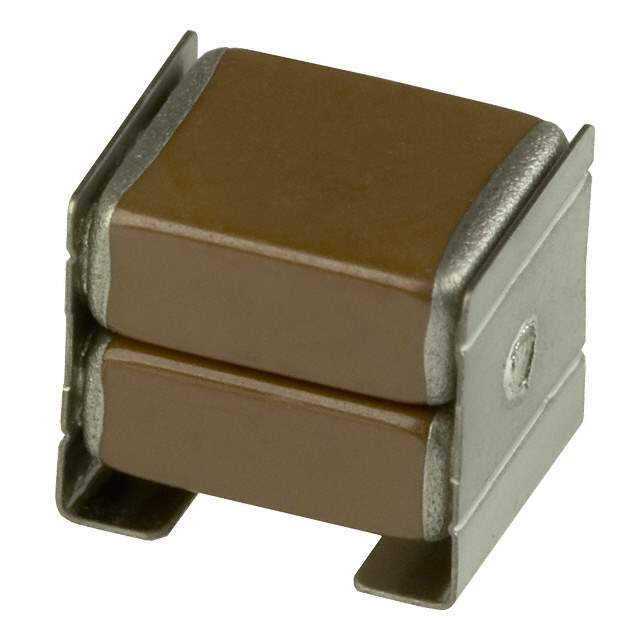

CKG45NX7R1C226M500JH Real Image
Same model may have multiple batches, images only for reference.

CKG45NX7R1C226M500JH

Part No CKG45NX7R1C226M500JH
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 22UF 16V X7R SMD / Cap Ceramic 22uF 16V X7R 20% 2 Stacked 125°C T/R
Datasheet
CKG45NX7R1C226M500JH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Series MEGACAP, CKG
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
Temperature Coefficient X7R
Operating Temperature Range -55°C ~ 125°C
Features Low ESL (Stacked)
Applications SMPS Filtering, Bypass, Decoupling
Mounting Surface Mount, MLCC
Package Stacked SMD, 2 J-Lead
Dimension 0.197" L x 0.138" W (5.00mm x 3.50mm)
Thickness (Maximum) 0.217" (5.50mm)
Lead Style J-Lead
Win Source Part Number 771527-CKG45NX7R1C226M500JH
Popularity Medium
Supply and Demand Status Balance
Family Name CKG45
Introduction Date May 26, 2013
ECCN EAR99
Country of Origin United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian CKG45NX7R1C226M500JH CAD Model

Description

The TDK Corporation MEGACAP CKG series capacitor is a stacked SMD, 2 J-lead capacitor with a capacitance of 22μF and a voltage rating DC of 16V.

  • Applications: SMPS filtering, bypass, and decoupling
  • Low ESL: Yes
  • Operating Temperature Range: -55°C to 125°C
  • Tolerance: ±20%
  • Temperature Coefficient: X7R
  • Mounting: Surface Mount
  • Lead Style: J-lead
  • Estimated EOL Date: 2028
