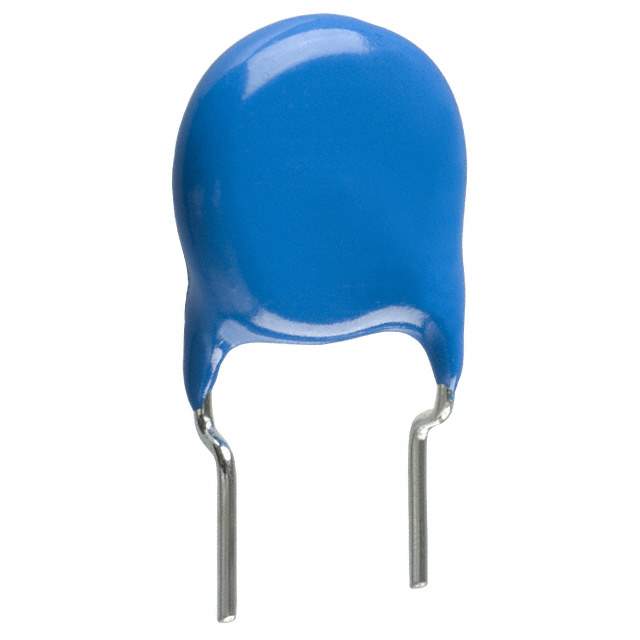

Same model may have multiple batches, images only for reference.

CK45-B3DD102KYNNA

Name: CK45-B3DD102KYNNA
Brand: TDK Corporation
SKU: 1330724
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CK45-B3DD102KYNNA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 2KV RADIAL / 1000 pF ±10% 2000V (2kV) Ceramic Capacitor B Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Ceramic Capacitors
Manufacturer	TDK Corporation
Packaging	Bulk
Capacitance	1000 pF
Tolerance	±10%
Voltage - Rated	2000V (2kV)
Temperature Coefficient	B
Temperature Range - Operating	-25°C ~ 105°C
Features	High Voltage
Applications	General Purpose
Mounting	Through Hole
Case / Package	Radial, Disc
Size / Dimension	0.295" Dia (7.50mm)
Height - Seated (Max)	0.453" (11.50mm)
Lead Spacing	0.197" (5.00mm)
Lead Style	Formed Leads - Kinked
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.24.0060
Other Part Number	CK45-B3DD102KYNNA02,CK45B3DD102KYNNA,445-175512,CK45-B3DD102KYNNA-ND
Standard Package	1,000
Win Source Part Number	1330724-CK45-B3DD102KYNNA
Ultra Librarian 3D Model	Ultra Librarian CK45-B3DD102KYNNA CAD Model

Alternative Products

Description

The TDK Corporation 1330724-CK45-B3DD102KYNNA is a high voltage ceramic capacitor that is used for general purpose applications.

Capacitance: 1000 pF
Tolerance: ±10%
Voltage Rating: 2000V (2kV)
Temperature Coefficient: B
Shape: Radial, disc-shaped
Leads: Formed leads that are kinked
