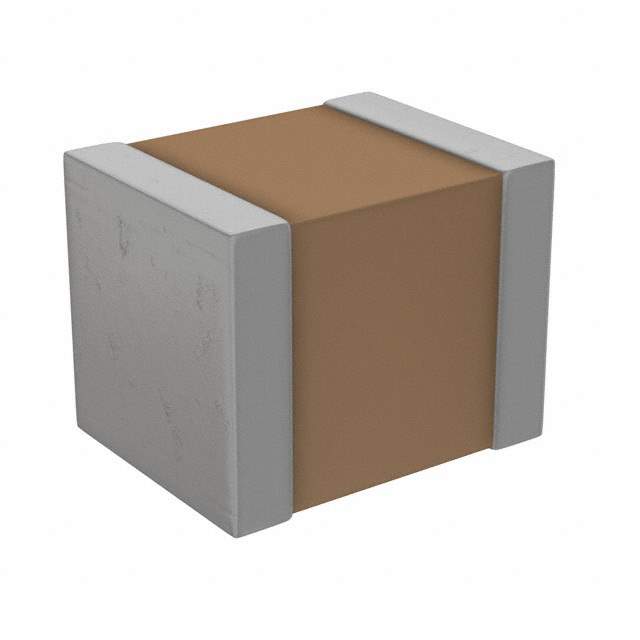

The CGA6P1X7R1C226MT is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed for applications requiring a high capacitance value and stable performance, particularly in environments with varying temperatures.

Applications

• Smoothing capacitors in power supplies
• Decoupling capacitors for integrated circuits
• Filtering in electronic circuits
• Voltage stabilization in sensitive electronic devices
• General-purpose applications in various electronic systems

Features

• High Capacitance: Provides a substantial capacitance of 22µF, suitable for demanding filtering and energy storage applications.
• Voltage Rating: Rated for 16V, allowing its use in many low-voltage circuits.
• X7R Dielectric: Employs X7R dielectric material, ensuring stable performance over a broad temperature range (-55°C to +125°C).
• Large Case Size: Larger size allows for better power dissipation and higher capacitance.
• RoHS Compliant: Complies with RoHS standards, ensuring environmental friendliness.

Benefits

• Stable Performance: The X7R dielectric provides minimal capacitance variation with temperature and voltage changes.
• Reliable Operation: Manufactured by TDK, a reputable manufacturer of high-quality electronic components.
• Effective Filtering: High capacitance value enables effective filtering of noise and ripple in power supplies.
• Wide Temperature Range: Can operate reliably in harsh environments with temperatures ranging from -55°C to +125°C.
• Cost-Effective: Offers a balance of performance and affordability for applications requiring high capacitance.

Additional Details

This capacitor uses a ceramic dielectric and is constructed using multilayer technology. It is designed for reflow soldering processes. The termination finish is typically matte tin plating to ensure good solderability. The specific case size is 1206. The X7R dielectric ensures the capacitance changes within ±15% from -55°C to +125°C.
