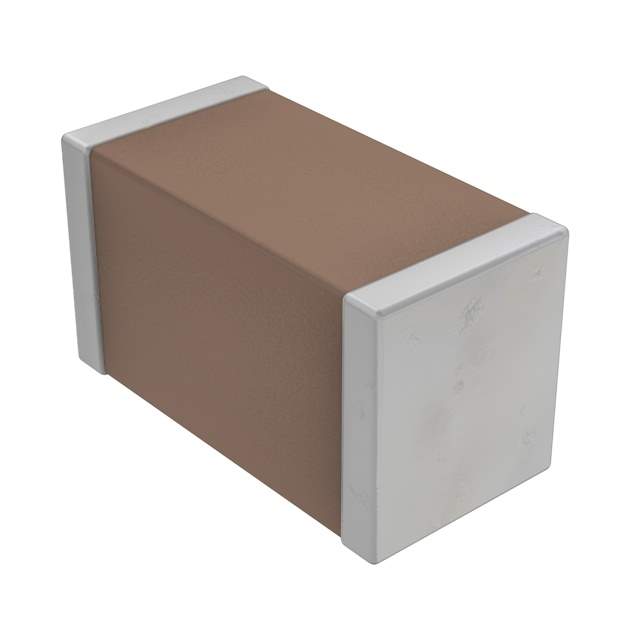

The CGA2B2X7R1H102KT0Y0F is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. It is designed for general-purpose applications requiring stable and reliable capacitance in a compact size.

Applications:

• Bypass Capacitors: Filtering noise and stabilizing voltage in electronic circuits.
• Decoupling Capacitors: Reducing noise on power rails for integrated circuits.
• Smoothing Capacitors: Reducing ripple in power supplies.
• Timing Circuits: Providing stable timing in oscillators and timers.
• Filtering Circuits: Removing unwanted frequencies in signal paths.
• General Electronic Devices: Used in a wide range of consumer and industrial electronics.

Features:

• Capacitance: 1000 pF (102)
• Voltage Rating: 50V (1H)
• Temperature Characteristic: X7R (Stable capacitance over temperature)
• Tolerance: ±10% (K)
• Size Code: 0402 (EIA) / 1005 (JIS)
• Termination: Nickel barrier with tin plating
• RoHS Compliant: Meets environmental regulations for hazardous substances

Benefits:

• Stable Capacitance: X7R dielectric provides stable capacitance over a wide temperature range.
• Compact Size: Small 0402 package for high-density circuit designs.
• Reliable Performance: TDK's high-quality manufacturing ensures consistent performance.
• RoHS Compliance: Environmentally friendly composition.
• Versatile Applications: Suitable for a wide range of general-purpose applications.
• Cost-Effective: Provides a reliable solution at a competitive price.

Additional Details:

The CGA2B2X7R1H102KT0Y0F is manufactured using TDK's advanced ceramic material technology and multilayer manufacturing processes. The X7R dielectric ensures that the capacitance changes by no more than ±15% over the temperature range of -55°C to +125°C. This makes it suitable for applications where stable capacitance is critical. The nickel barrier termination provides excellent solderability and resistance to leaching. This capacitor is widely used in various electronic devices due to its reliability, stability, and compact size.
