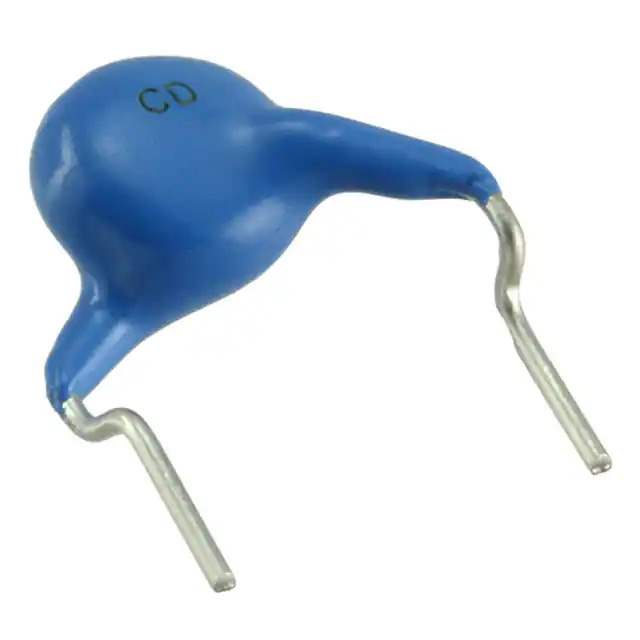

Same model may have multiple batches, images only for reference.

CD90ZU2GA222MYNKA

Name: CD90ZU2GA222MYNKA
Brand: TDK Corporation
SKU: 915180
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CD90ZU2GA222MYNKA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 2200PF 440VAC Z5U RADIAL / 2200 pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	TDK Corporation
Series	CD
Package	Bulk
Product Status	Obsolete
Capacitance	2200 pF
Tolerance	±20%
Voltage - Rated	440VAC
Temperature Coefficient	Z5U
Temperature Range - Operating	-25°C ~ 125°C
Features	High Voltage
Ratings	X1, Y1
Applications	Safety
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.531" (13.50mm)
Lead Spacing	0.394" (10.00mm)
Lead Style	Formed Leads - Kinked
Standard Package	1,000 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	915180-CD90ZU2GA222MYNKA
Ultra Librarian 3D Model	Ultra Librarian CD90ZU2GA222MYNKA CAD Model

Alternative Products

Description

The CD90ZU2GA222MYNKA is a high voltage ceramic capacitor from TDK Corporation.

Series: CD
Capacitance: 2200 pF
Tolerance: ±20%
Voltage - Rated: 440VAC
Temperature Coefficient: Z5U
Applications: Safety
Package / Case: Radial, Disc
Size / Dimension: 0.374" Dia (9.50mm)
Height - Seated (Max): 0.531" (13.50mm)
Features: Formed Leads
Lead Spacing: 0.394" (10.00mm)
Mounting Type: Through Hole
Packaging: Bulk
Standard Package: 1,000 pcs
Operating Temperature: -25°C ~ 125°C
Product Status: Obsolete
