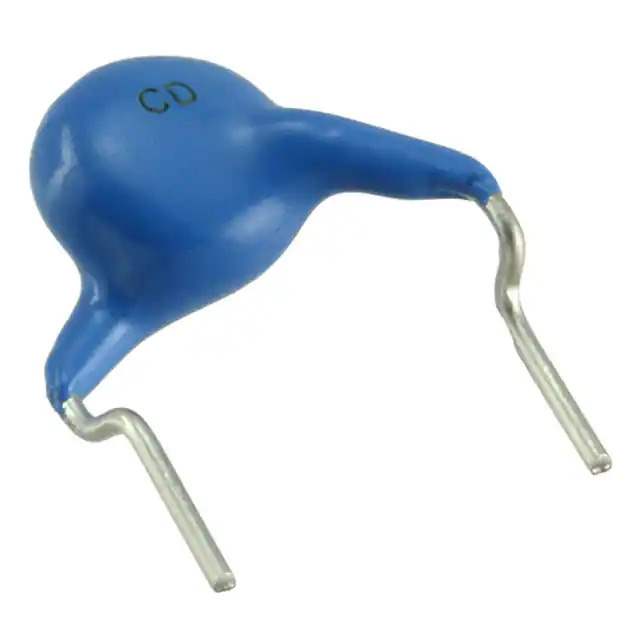

Same model may have multiple batches, images only for reference.

CD70ZU2GA102MYNKA

Name: CD70ZU2GA102MYNKA
Brand: TDK Corporation
SKU: 915135
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	CD70ZU2GA102MYNKA
Manufacturer	TDK Corporation
Catalog	Ceramic Capacitors
Description	CAP CER 1000PF 440VAC Z5U RADIAL / 1000 pF ±20% 440VAC Ceramic Capacitor Z5U Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	TDK Corporation
Series	CD
Package	Bulk
Product Status	Obsolete
Capacitance	1000 pF
Tolerance	±20%
Voltage - Rated	440VAC
Temperature Coefficient	Z5U
Temperature Range - Operating	-55°C ~ 125°C
Features	High Voltage
Ratings	X1, Y1
Applications	Safety
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.276" Dia (7.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Lead Spacing	0.394" (10.00mm)
Lead Style	Formed Leads - Kinked
Standard Package	1,000 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.23.0060
Win Source Part Number	915135-CD70ZU2GA102MYNKA
Ultra Librarian 3D Model	Ultra Librarian CD70ZU2GA102MYNKA CAD Model

Alternative Products

Description

The CD70ZU2GA102MYNKA is a ceramic capacitor from TDK Corporation. It belongs to the CD series and has a capacitance of 1000 pF.

Capacitance: 1000 pF
Application: Safety
Packaging: Bulk
Diameter: 0.276" (7.00mm)
Height: 0.433" (11.00mm)
Tolerance: ±20%
Voltage: 440VAC
Temperature Coefficient: Z5U
Temperature Range: -55°C to 125°C
Mounting: Through Hole
Package: Radial, Disc
ECCN: EAR99
REACH: Unaffected
HTSUS: 8532.23.0060
Status: Obsolete
Series: CD
Manufacturer: TDK Corporation
