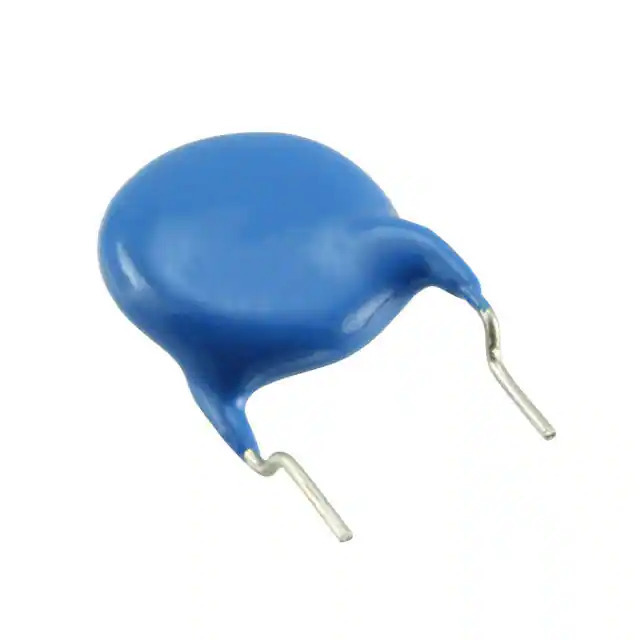

Same model may have multiple batches, images only for reference.
CD45-E2GA472M-NKA TDK Corporation
Same model may have multiple batches, images only for reference.

CD45-E2GA472M-NKA

Part No CD45-E2GA472M-NKA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 440VAC RADIAL / 4700 pF ±20% 440VAC Ceramic Capacitor E Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Active
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 440VAC
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Thickness (Max) -
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1360431-CD45-E2GA472M-NKA
Ultra Librarian 3D Model Ultra Librarian CD45-E2GA472M-NKA CAD Model

Description

The TDK Corporation CD series ceramic capacitor is a radial capacitor manufactured by TDK Corporation.

  • Capacitance: 4700 pF
  • Voltage Rating: 440VAC
  • Application: Safety
  • Temperature Range: -25°C to 105°C
  • Tolerance: ±20%
  • Package: Radial, Disc
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.512" Dia (13.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
