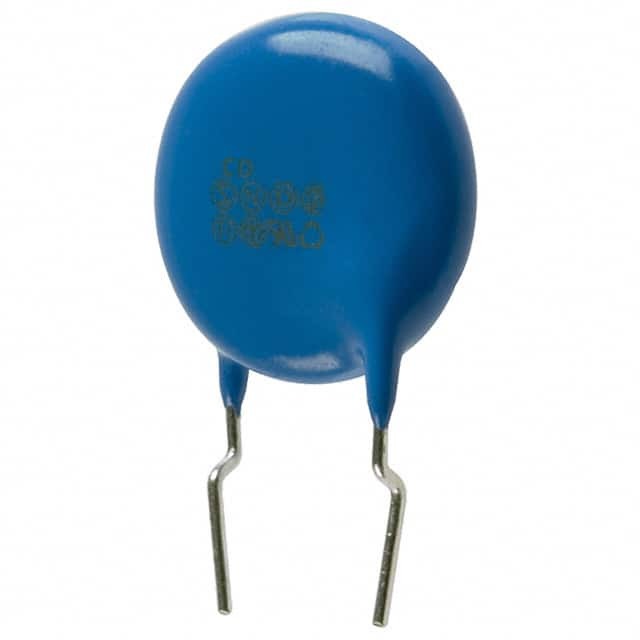

Same model may have multiple batches, images only for reference.
CD16-E2GA472MYGS
Same model may have multiple batches, images only for reference.

CD16-E2GA472MYGS

Part No CD16-E2GA472MYGS
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 4700PF 250VAC RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CD
Package Bulk
Product Status Obsolete
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 250V
Temperature Coefficient E
Temperature Range - Operating -25°C ~ 105°C
Features High Voltage
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.610" Dia (15.50mm)
Height - Seated (Max) 0.768" (19.50mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Formed Leads - Kinked
Standard Package 1,000 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 915024-CD16-E2GA472MYGS
Ultra Librarian 3D Model Ultra Librarian CD16-E2GA472MYGS CAD Model

Description

The TDK Corporation 915024-CD16-E2GA472MYGS is a high voltage ceramic capacitor in the CD series.

  • Capacitance: 4700 pF
  • Tolerance: ±20%
  • Rated Voltage: 250V
  • Temperature Coefficient: E
  • Application: Safety
  • Standard Package: 1,000 pcs
  • Size/Dimension: 0.610" Dia (15.50mm)
  • Height - Seated (Max): 0.768" (19.50mm)
  • Leads: Formed
  • Lead Spacing: 0.394" (10.00mm)
  • Mounting Type: Through Hole
  • Package/Case: Radial, Disc
  • Operating Temperature: -25°C to 105°C
  • Product Status: Obsolete
  • REACH: Not affected
