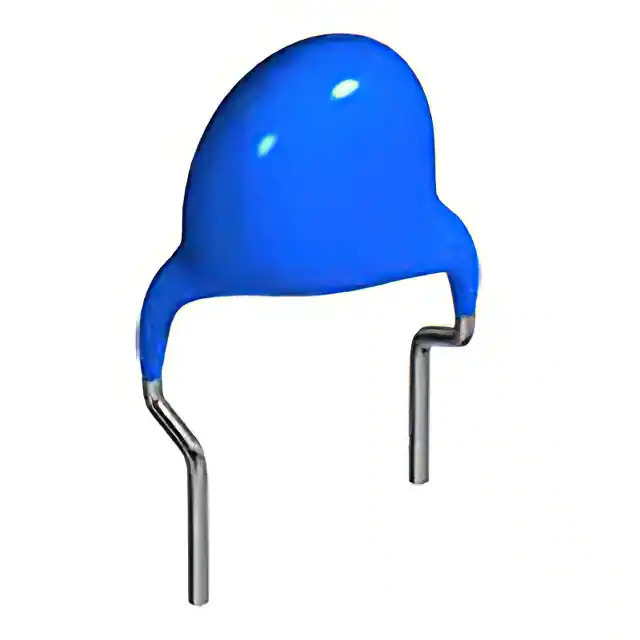

CC45SL3FD101JYGNA TDK Corporation
Same model may have multiple batches, images only for reference.

CC45SL3FD101JYGNA

Part No CC45SL3FD101JYGNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 100PF 3KV SL RADIAL / 100 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Product Status Active
Capacitance 100 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.335" Dia (8.50mm)
Height - Seated (Max) 0.492" (12.50mm)
Thickness (Max) -
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.23.0040
Win Source Part Number 1359990-CC45SL3FD101JYGNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3FD101JYGNA CAD Model

Description

The CC45 series from TDK Corporation is a radial, disc ceramic capacitor. Bold the product name (e.g., BAV99S,135 → CC45 and manufacturer (e.g., Nexperia USA Inc. → TDK Corporation.

  • Capacitance: 100 pF
  • Tolerance: ±5%
  • Voltage - Rated: 3000V (3kV)
  • Applications: General Purpose
  • Lead Spacing: 0.295" (7.50mm)
  • Size / Dimension: 0.335" Dia (8.50mm)
  • Mounting Type: Through Hole
  • Height - Seated (Max): 0.492" (12.50mm)
  • ECCN: EAR99
  • Product Status: Active
