Same model may have multiple batches, images only for reference.

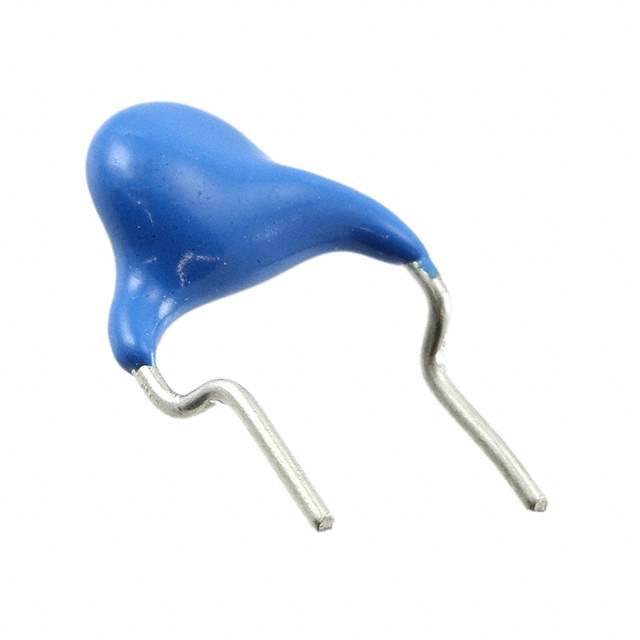

CC45SL3FD100JYNNA Real Image
Same model may have multiple batches, images only for reference.

CC45SL3FD100JYNNA

Part No CC45SL3FD100JYNNA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10PF 3KV SL RADIAL / 10 pF ±5% 3000V (3kV) Ceramic Capacitor SL Radial, Disc
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr TDK Corporation
Series CC45
Package Bulk
Capacitance 10 pF
Tolerance ±5%
Voltage - Rated 3000V (3kV)
Temperature Coefficient SL
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.217" Dia (5.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Formed Leads - Kinked
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Other Names CC45SL3FD100JYNNA02,CC45SL3FD100JYNNA-ND,445-15987
Standard Package 1,000
Win Source Part Number 1015133-CC45SL3FD100JYNNA
Ultra Librarian 3D Model Ultra Librarian CC45SL3FD100JYNNA CAD Model

Description

TDK Corporation CC45SL3FD100JYNNA is a ceramic capacitor that is suitable for use in a variety of electronic applications.

  • Capacitance: 10 pF
  • Voltage Rating: 3000V (3kV)
  • Temperature Coefficient: SL
  • Tolerance: ±5%
