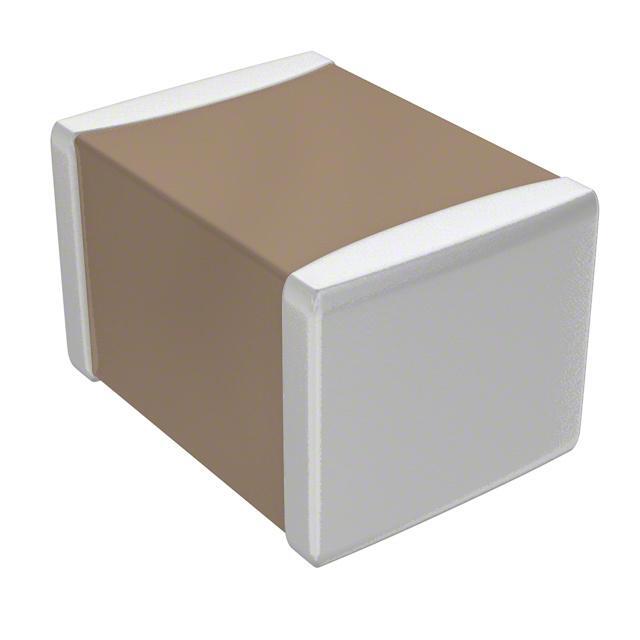

Same model may have multiple batches, images only for reference.
C4532X7R1H685K250KB TDK Corporation
Same model may have multiple batches, images only for reference.

C4532X7R1H685K250KB

Part No C4532X7R1H685K250KB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 6.8UF 50V X7R 1812
Datasheet
C4532X7R1H685K250KB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Capacitance 6.8μF
Tolerance ±10%
Voltage Rating 50V
Temperature Coefficient X7R
Temperature Range - Operating -55°C to 125°C
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.110" (2.80mm)
Win Source Part Number 1027338-C4532X7R1H685K250KB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name C4532
Introduction Date December 21, 2012
ECCN EAR99
Country of Origin Japan, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian C4532X7R1H685K250KB CAD Model

Description

The TDK Corporation C4532X7R1H685K250KB is a high popularity electronic component used in various applications.

  • Manufacturer: TDK Corporation
  • Win Source Part Number: 1027338-C4532X7R1H685K250KB
  • Capacitance: 6.8μF
  • Tolerance: ±10%
  • Voltage Rating: 50V
  • Application: General Purpose
  • Package: Reel
  • Mounting: Surface Mountable
  • Operating Temperature: -55°C to 125°C
  • Dimensions: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Halogen-Free: Compliant
  • Applications: Industrial, Consumer Electronics, Portable Devices, and Power Management
