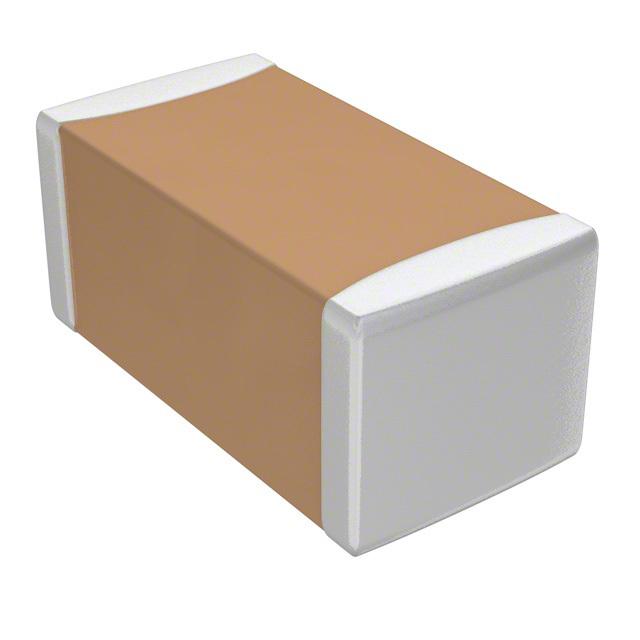

C3216X5R1E476M160AC

Part No C3216X5R1E476M160AC
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 47UF 25V X5R 1206
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 25V
Temperature Coefficient X5R
Temperature Range - Operating -55°C to 85°C
Features Low ESL
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.071" (1.80mm)
Win Source Part Number 1027175-C3216X5R1E476M160AC
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Consumer Electronics, Power Management, Automation & Process Control, Portable Devices
Ultra Librarian 3D Model Ultra Librarian C3216X5R1E476M160AC CAD Model

Description

C3216X5R1E476M160AC from TDK Corporation is a ceramic capacitor commonly considered for general-purpose decoupling, filtering, and bulk capacitance support in compact electronic assemblies. Parts in this category are widely used in consumer devices, industrial controls, communications hardware, and embedded power circuits where stable passive performance and space-efficient packaging are important. For design engineers, this type of multilayer ceramic capacitor is typically valued for dense board layouts, automated assembly compatibility, and broad applicability across digital and analog sections. Because the provided lifecycle status is unknown, teams should treat long-term availability cautiously and confirm current production status before locking it into new designs or forecasting service builds. RoHS compliance information is not available in the provided data, so environmental compliance should be verified directly through the latest TDK datasheet, manufacturer declarations, or authorized distribution documentation before procurement or regulatory submission.
