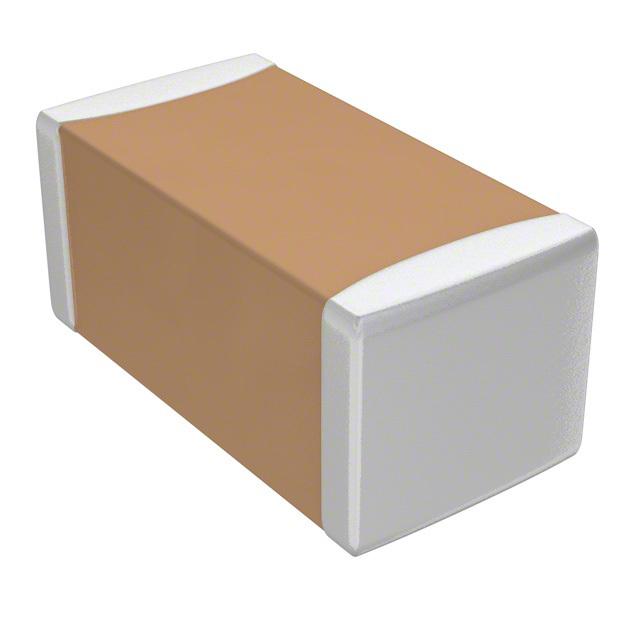

Same model may have multiple batches, images only for reference.
C3216X5R1C476M160AB TDK Corporation
Same model may have multiple batches, images only for reference.

C3216X5R1C476M160AB

Part No C3216X5R1C476M160AB
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 47UF 16V X5R 1206
Datasheet
C3216X5R1C476M160AB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Capacitance 47μF
Tolerance ±20%
Voltage Rating 16V
Temperature Coefficient X5R
Temperature Range - Operating -55°C to 85°C
Features Low ESL
Applications General Purpose
Mounting Surface Mount, MLCC
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.071" (1.80mm)
Win Source Part Number 1027173-C3216X5R1C476M160AB
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Consumer Electronics, Power Management, Automation & Process Control, Portable Devices
Ultra Librarian 3D Model Ultra Librarian C3216X5R1C476M160AB CAD Model

Description

The TDK Corporation Capacitor is a surface mount, MLCC capacitor that has a voltage rating of 16V and a capacitance of 47μF.

  • Mounting Type: Surface Mount, MLCC
  • Voltage Rating: 16V
  • Capacitance: 47μF
  • Tolerance: ±20%
  • Temperature Coefficient: X5R
  • Thickness (Max): 0.071" (1.80mm)
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Application: General-Purpose
  • Features: Low ESL
  • Applications: Consumer Electronics, Power Management, Automation & Process Control, Portable Devices
