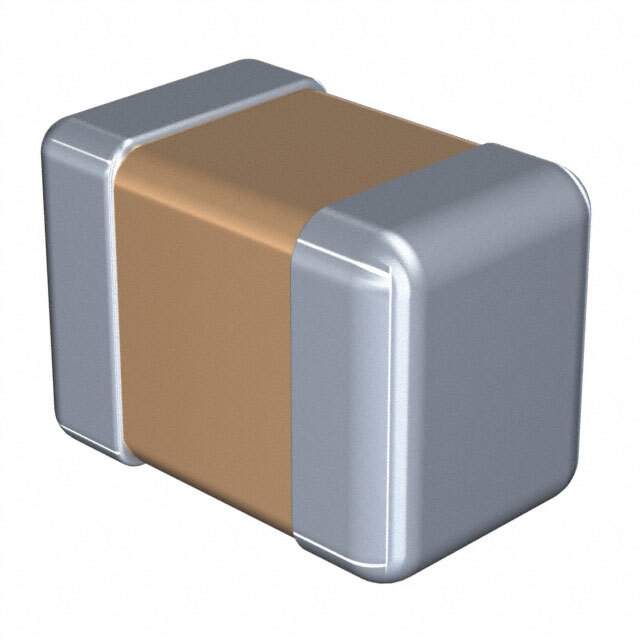

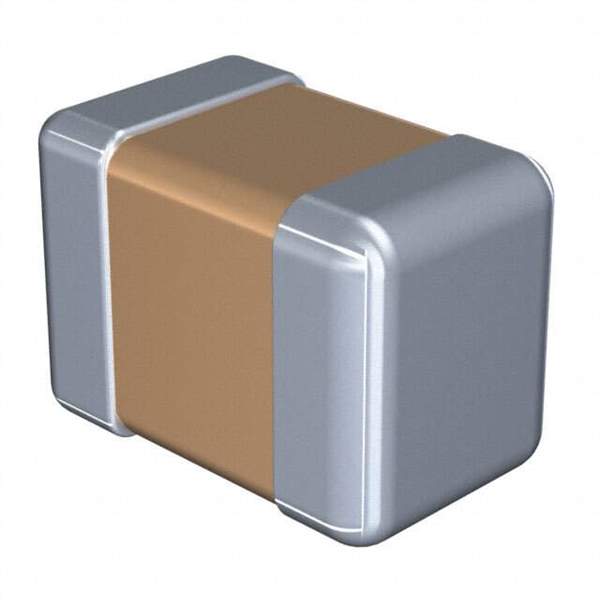

The C2012X7R1V225K125AB is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. MLCCs are passive components that store electrical energy in an electric field. They are widely used in electronic circuits for decoupling, bypassing, filtering, and energy storage due to their compact size and good electrical characteristics.

Applications

• Decoupling: Used to decouple power supply lines in digital circuits, reducing noise and voltage fluctuations.
• Bypassing: Applied to bypass high-frequency signals to ground, reducing noise and interference.
• Filtering: Found in filter circuits to attenuate unwanted frequency components.
• Smoothing: Employed in smoothing circuits to reduce ripple in DC power supplies.
• Timing Circuits: Used in timing circuits to set time constants.

Features

• X7R Dielectric: Features an X7R dielectric, which offers good temperature stability and capacitance variation over temperature.
• High Capacitance: Provides a relatively high capacitance value for its size.
• Small Size: Compact 0805 (2012 metric) package for high-density circuit designs.
• Low ESR: Low equivalent series resistance (ESR) for high-frequency performance.
• RoHS Compliant: Compliant with RoHS (Restriction of Hazardous Substances) directive.

Benefits

• Improved Circuit Performance: Provides stable and reliable capacitance for optimal circuit performance.
• Reduced Noise: Effective decoupling and bypassing reduce noise and improve signal integrity.
• Long Lifespan: Ceramic construction ensures a long lifespan and high reliability.
• Space Savings: Small size allows for compact circuit designs.
• Environmentally Friendly: RoHS compliance ensures environmental safety.

Additional Details

The C2012X7R1V225K125AB's specifications include a capacitance of 2.2µF, a voltage rating of 35V, and a tolerance of ±10%. The X7R dielectric ensures a stable capacitance over a temperature range of -55°C to +125°C, making it suitable for applications requiring temperature stability. Proper handling and soldering techniques are crucial to prevent damage during assembly.
