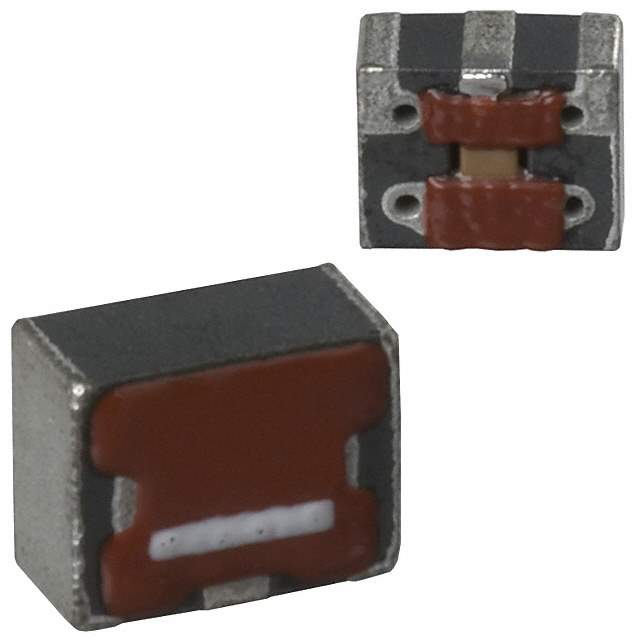

ACF321825-332-TD01 Real Image
Same model may have multiple batches, images only for reference.

ACF321825-332-TD01

Part No ACF321825-332-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACF321825-332-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 37MHz to 90MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 007798-ACF321825-332-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACF321825-332-TD01 CAD Model

Description

Description

The ACF321825-332-TD01 inductor is built to optimize power conversion efficiency and is designed for high-frequency electronic applications.

Applications

  • Power Amplifiers
  • Frequency Modulation Systems
  • High-Speed Data Processing
  • Smart Grid Technologies

Features and Benefits

  • Enhanced power handling capability
  • Efficient frequency management
  • Robust against environmental stresses
  • Comprehensive compliance with environmental regulations

Additional Details

Manufactured with precision, this component ensures optimal stability and efficiency, assisting in reducing development time and costs.
