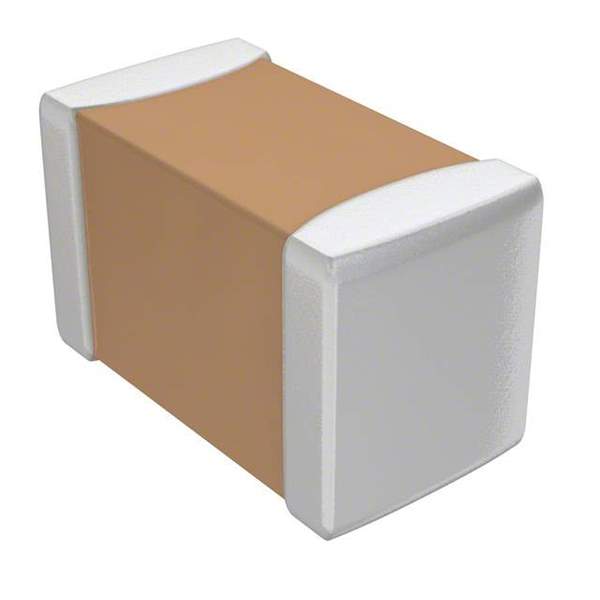

The C1608C0G1H471JT000N is a multilayer ceramic capacitor (MLCC) from TDK Corporation. It is designed for general-purpose applications where a stable and reliable capacitance is required. This capacitor utilizes a C0G dielectric material, known for its high stability and minimal capacitance variation over temperature and voltage.

Applications:

• Decoupling in digital circuits
• Smoothing power supply lines
• Filtering in electronic circuits
• General-purpose applications requiring stable capacitance
• Bypass capacitors in various electronic devices

Features:

• Capacitance: 470 pF (picofarads)
• Voltage Rating: 50 V (Volts)
• Dielectric Material: C0G (Class 1)
• Temperature Coefficient: 0 ±30 ppm/°C
• Tolerance: ±5%
• Size: 0603 (1.6 mm x 0.8 mm)
• Termination: Nickel barrier with tin plating

Benefits:

• High Stability: C0G dielectric ensures minimal capacitance change with temperature and voltage, providing stable performance.
• Low ESR: Equivalent Series Resistance (ESR) is low, minimizing power loss and heat generation.
• Reliable Performance: TDK's manufacturing processes ensure high reliability and long operational life.
• Small Size: The 0603 package allows for high-density mounting on PCBs.
• Wide Application: Suitable for a broad range of applications due to its stable characteristics.

Additional Details:

The C1608C0G1H471JT000N is constructed using a multi-layer ceramic structure. The C0G dielectric provides excellent stability, making it suitable for critical applications where capacitance drift cannot be tolerated. The nickel barrier termination provides excellent solderability and resistance to solder leaching. The 0603 package is industry-standard, ensuring compatibility with automated assembly equipment.

This capacitor meets RoHS compliance standards, indicating it does not contain hazardous substances. It is designed for reflow soldering processes. The part is ideal for applications requiring high precision and stability over a wide range of operating conditions.
