Same model may have multiple batches, images only for reference.

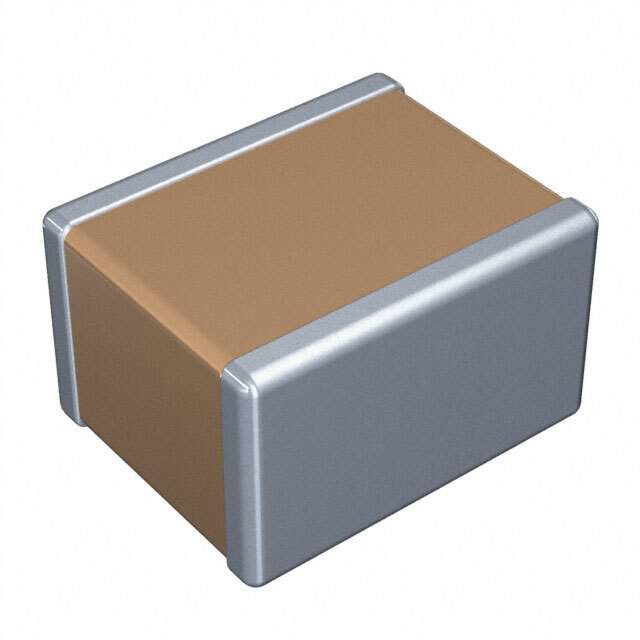

C0816X7S0G105M050AC Real Image
Same model may have multiple batches, images only for reference.

C0816X7S0G105M050AC

Part No C0816X7S0G105M050AC
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 1UF 4V X7S 0306
Datasheet
C0816X7S0G105M050AC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Capacitance 1μF
Tolerance ±20%
Voltage Rating 4V
Temperature Coefficient X7S
Temperature Range - Operating -55°C to 125°C
Features Low ESL (Reverse Geometry)
Applications Bypass, Decoupling
Mounting Surface Mount, MLCC
Dimension 0.031" L x 0.063" W (0.80mm x 1.60mm)
Thickness (Max) 0.024" (0.60mm)
Win Source Part Number 097438-C0816X7S0G105M050AC
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian C0816X7S0G105M050AC CAD Model

Description

Description

The C0816X7S0G105M050AC is characterized by its robust design and is equipped to handle a capacitance value of 1uF with a tolerance of ±20%. This component is particularly useful in applications requiring high volumetric efficiency and stable electrical characteristics.

Applications

  • Power Supply Smoothing
  • EMI/RFI Suppression
  • Timing Circuitry
  • DC-DC Converters

Features and Benefits

  • High Instantaneous Surge Endurance
  • Extended Temperature Range Performance
  • Standard 0805 Package Size
  • Compatibility with Robust Circuit Designs

The capacitor's enhanced insulation properties and high breakdown voltage make it suitable for demanding industrial environments.
