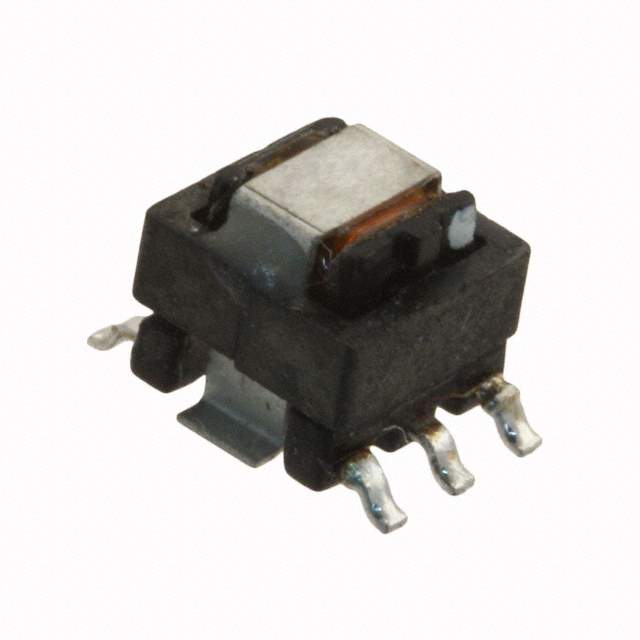

B82801B205A100 Real Image
Same model may have multiple batches, images only for reference.

B82801B205A100

Part No B82801B205A100
Manufacturer TDK Corporation
Catalog Custom Parts (B - D)
Description Current Transformer 1: 100 500VAC 0.0008Ohm Prim. DCR 5.5Ohm Sec. DCR 20000mA Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Current Rating 20 A
DC Resistance (DCR) 5.5 Ω
Frequency 1 MHz
Height 5.08 mm
Height - Seated (Max) 5.08 mm
Inductance 2 mH
Lead/Base Style Gull Wing
Lead Free Lead Free
Length 8.13 mm
Max Operating Temperature 130 °C
Min Operating Temperature -40 °C
Mount Surface Mount
RoHS Compliant
Termination Gull Wing
Width 7.11 mm
Win Source Part Number 1154903-B82801B205A100
Categories Custom Parts
Manufacturer TDK Corporation
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian B82801B205A100 CAD Model

Description

The B82801B205A100 is a custom part from TDK Corporation.

  • Manufacturer: TDK Corporation
  • Termination: Gull-wing termination
  • Current Rating: 20A
  • Inductance: 2mH
  • Frequency: 1MHz
  • DC Resistance: 5.5Ω
  • Lead-Free: Yes
  • Temperature Range: -40°C to 130°C
  • Supply and Demand Status: Currently limited
