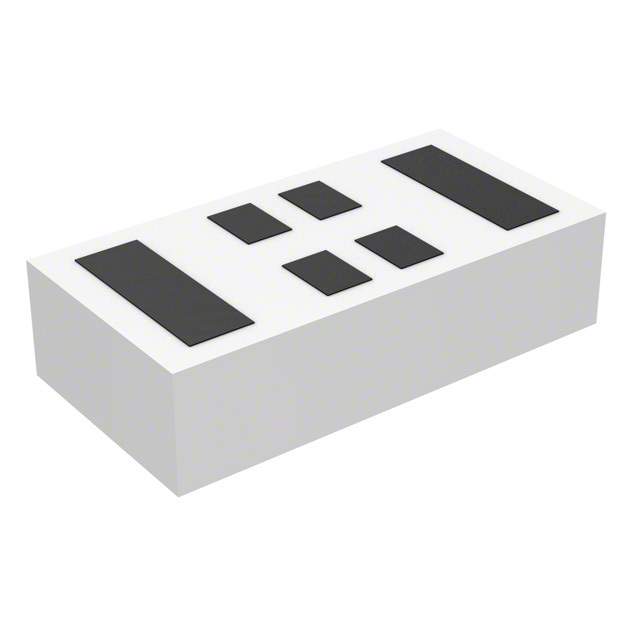

ANT016008LCS2442MA1 TDK Corporation ANT016008LCS2442MA1 Real Image ANT016008LCS2442MA1 label picture 2 ANT016008LCS2442MA1 real image
Same model may have multiple batches, images only for reference.
ANT016008LCS2442MA1 TDK Corporation ANT016008LCS2442MA1 Real Image ANT016008LCS2442MA1 label picture 2 ANT016008LCS2442MA1 real image
ANT016008LCS2442MA1 TDK Corporation ANT016008LCS2442MA1 Real Image ANT016008LCS2442MA1 label picture 2 ANT016008LCS2442MA1 real image
Same model may have multiple batches, images only for reference.

ANT016008LCS2442MA1

Part No ANT016008LCS2442MA1
Manufacturer TDK Corporation
Catalog RF Antennas
Description ANTENNA 2.4GHZ SMD
Datasheet
ANT016008LCS2442MA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer TDK Corporation
Packaging Reel - TR
Frequency Group UHF (2 GHz ~ 3 GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.484GHz
Antenna Type Chip
Number of Bands 1
VSWR 3
Gain 1.6dBi
Termination Solder
Mounting SMD
Height (Maximum) 0.016" (0.40mm)
Manufacturer Homepage www.tdk.com
RoHS State Request Verification
Win Source Part Number 759172-ANT016008LCS2442MA1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ANT016008LCS2442MA1 CAD Model

Description

The ANT016008LCS2442MA1 is a chip antenna manufactured by TDK Corporation.

  • Frequency Range: 2.4GHz ~ 2.484GHz
  • VSWR: 3
  • Gain: 1.6dBi
  • Antenna Type: Chip
  • Number of Bands: One
  • Frequency Group: UHF (2 GHz ~ 3 GHz)
  • Frequency (Center/Band): 2.4GHz
  • Height: 0.016" (0.40mm)
