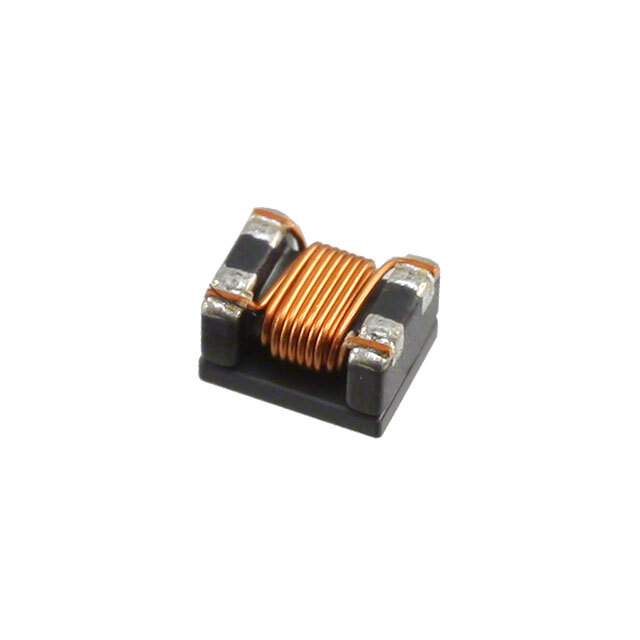

ACP3225-102-2P-TL000 Real Image
Same model may have multiple batches, images only for reference.

ACP3225-102-2P-TL000

Part No ACP3225-102-2P-TL000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.5A 2LN 1KOHM SMD / 2 Line Common Mode Choke Surface Mount 1 kOhms @ 100 MHz 1.5A DCR 50mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Product Status Not For New Designs
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 50mOhm (Typ)
Voltage Rating - DC 60V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) 0.079" (2.00mm)
Case / Package Horizontal, 4 PC Pad
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number ACP3225-102-2P-TL000-ND,445-174210-1,445-174210-2,445-174210-6
Standard Package 5,000
Win Source Part Number 1328227-ACP3225-102-2P-TL000
Ultra Librarian 3D Model Ultra Librarian ACP3225-102-2P-TL000 CAD Model

Description

The TDK Corporation common mode choke is a surface mountable power line filter designed to provide effective noise suppression for electronic circuits.

  • Impedance: 1 kOhms @ 100 MHz
  • DC Resistance: 50mOhm
  • Maximum Current: 1.5A
  • Voltage: 60V DC
  • Packaging: Reel of 5000 units
  • Height: 0.079 inches
  • Compliance: RoHS3
  • Status: Not recommended for new designs
