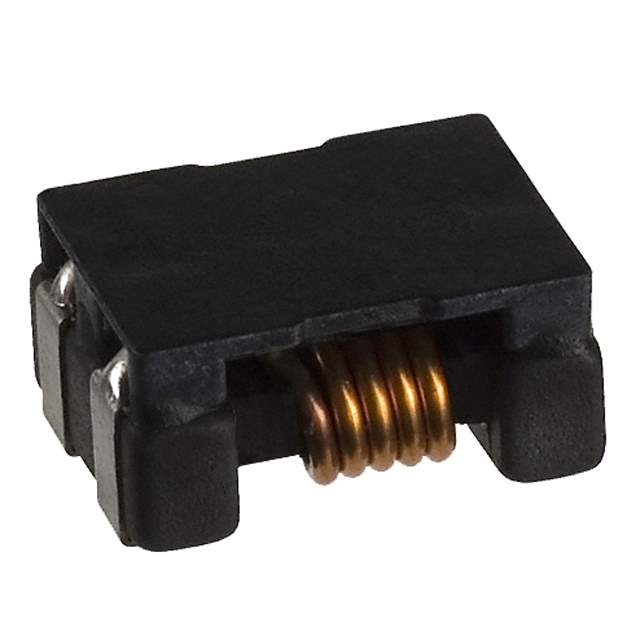

The ACM70V-701-2PL-TL is a common mode choke, produced by TDK Corporation, designed to attenuate common mode noise in electronic circuits. It is used to enhance signal integrity and reduce electromagnetic interference (EMI). The device provides effective noise suppression without significantly impacting the differential signal.

Applications:

• Common mode noise suppression in USB interfaces.
• Filtering in signal and data lines (e.g., Ethernet, HDMI).
• EMI reduction in power supplies and DC-DC converters.
• Noise filtering in automotive electronics.
• Signal integrity improvement in communication equipment.

Features:

• High common mode impedance for effective noise attenuation.
• Low differential mode impedance to minimize signal distortion.
• Compact size for space-constrained applications.
• Excellent EMI suppression characteristics.
• Robust design for reliable performance.

Benefits:

• Improved signal integrity by reducing common mode noise.
• Reduced EMI emissions, facilitating regulatory compliance.
• Enhanced system reliability by minimizing noise-related issues.
• Smaller PCB footprint due to compact design.
• Optimal noise filtering in a variety of applications.

Additional Details:

The ACM70V-701-2PL-TL utilizes a ferrite core material optimized for wide-band noise suppression. It is designed for automated assembly processes. The device is well-suited for applications where both signal integrity and EMI reduction are critical. TDK’s common mode chokes are widely recognized for their high quality and performance. This component is RoHS compliant.
