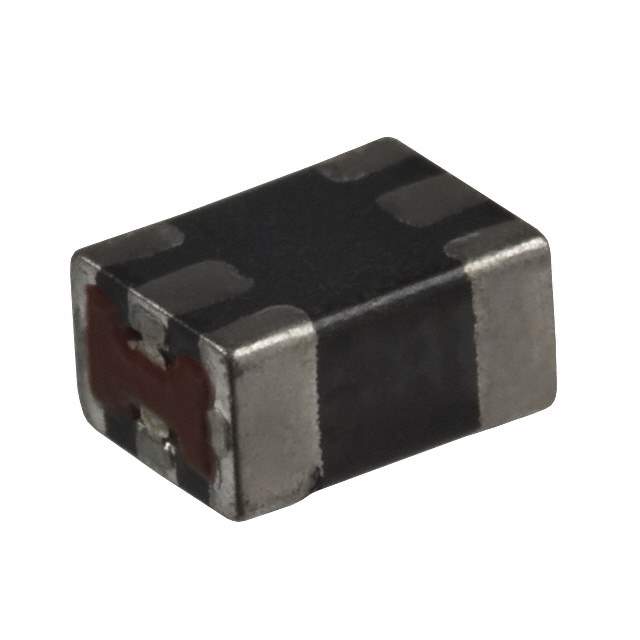

ACM4532-801-2P-T00

Part No ACM4532-801-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1A 2LN 800 OHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 800 Ohm @ 100MHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 100 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1812 (4532 Metric), 6 Lead
Win Source Part Number 092473-ACM4532-801-2P-T00
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM4532-801-2P-T00 CAD Model

Description

ACM4532-801-2P-T00: High-Performance Noise Suppressor

The ACM4532-801-2P-T00 builds upon the strengths of its predecessor, offering improved noise suppression capabilities and versatile application potential.

  • Applications
    • Industrial Control Systems
    • Home Appliances
    • Networking Devices
  • Features and Benefits
    • Enhanced EMI Suppression: Provides better interference control for sensitive electronics.
    • Compact Design: Easily fits in restricted spaces.
    • Reliable Performance: Suitable for long-term usage.
  • Additional Details
    • Compatible with a wide range of electronic devices.
    • Part of an established series focused on quality.
    • Meets international safety and performance standards.
