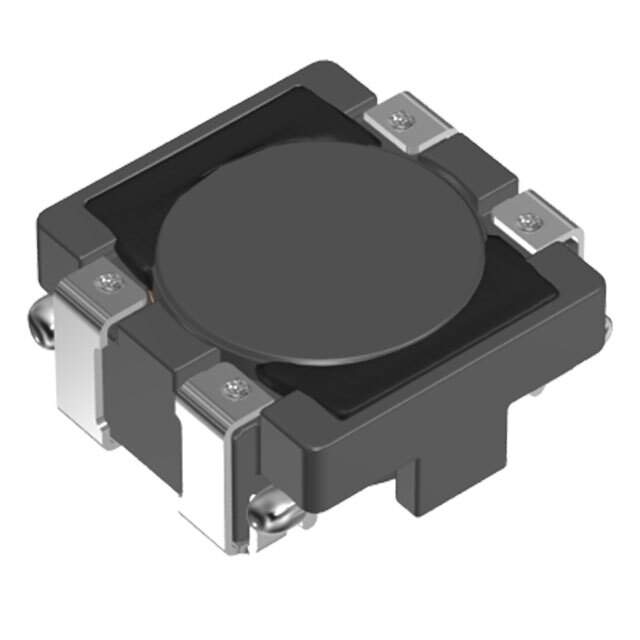

ACM4520V-421-2P-T00 Real Image
Same model may have multiple batches, images only for reference.

ACM4520V-421-2P-T00

Part No ACM4520V-421-2P-T00
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.4A 2LN 420OHM SMD AEC-Q200
Datasheet
ACM4520V-421-2P-T00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Series ACM-V
Packaging Reel - TR
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 420 Ohm @ 100MHz
Current Rating (Maximum) 1.4A
DC Resistance (DCR) (Maximum) 55 mOhm
Voltage Rating - DC 50V
Operating Temperature Range -40°C ~ 125°C
Ratings AEC-Q200
Mounting SMD
Size 0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Maximum) 0.079" (2.00mm)
Package Horizontal, 4 PC Pad
Manufacturer Homepage www.tdk.com
Win Source Part Number 744174-ACM4520V-421-2P-T00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Family Name ACM4520V
Introduction Date March 05, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian ACM4520V-421-2P-T00 CAD Model

Description

The ACM4520V-421-2P-T00 is a product from TDK Corporation that is designed for use in electronic devices.

  • Series: ACM-V
  • Packaging: Reel - TR
  • Operating Temperature: -40°C ~ 125°C
  • Package: Horizontal, 4 PC pad
  • Voltage Rating - AC: Not Applicable
  • Voltage Rating - DC: 50V
  • Approvals: Yes
  • Mounting Type: SMD
  • Filter Type: Power Line
  • Size: 0.185" L x 0.177" W (4.70mm x 4.50mm)
  • Lines: 2
  • Impedance @ Frequency: 420 Ohm @ 100MHz
  • Family Name: ACM4520V
  • Category: Filter
  • Manufacturer Homepage: www.tdk.com
  • Height (Maximum): 0.079" (2.00mm)
  • Current Rating (Maximum): 1.4A
  • DC Resistance (DCR) (Maximum): 55 mOhm
  • Alternative Parts (Cross-Reference): ACM4520V-421-2P-TL00
  • Introduction Date: March 05, 2013
  • Estimated EOL Date: 2024
  • ECCN: EAR99
  • Halogen-Free: Compliant
  • Supply and Demand Status: Limited
  • Quantity per Package: 800
