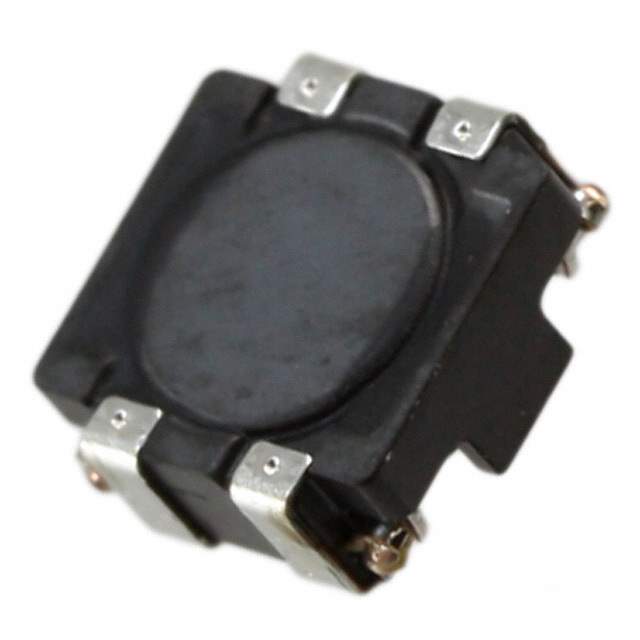

ACM4520-901-2P-TL000 Real Image
Same model may have multiple batches, images only for reference.

ACM4520-901-2P-TL000

Part No ACM4520-901-2P-TL000
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 2A 2LN 900 OHM SMD
Datasheet
ACM4520-901-2P-TL000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 800
Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 900 Ohm @ 100MHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 60 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 076784-ACM4520-901-2P-TL000
Family Name ACM
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian ACM4520-901-2P-TL000 CAD Model

Description

Product Overview

The ACM4520-901-2P-TL000 is a versatile electronic component tailored for applications necessitating high precision and durability. Its innovative design allows for seamless integration into complex systems.

Features and Benefits

  • Superior shock and vibration resistance.
  • Highly efficient, minimizing operational costs.
  • Wide operating temperature range for various environments.
  • Compact and lightweight, saving space and weight.

Applications

  • Automotive electronics
  • Networking equipment
  • Medical devices
  • Signal amplification projects

The ACM4520-901-2P-TL000 is ideal for use in projects that demand precision, resilience, and space efficiency.
