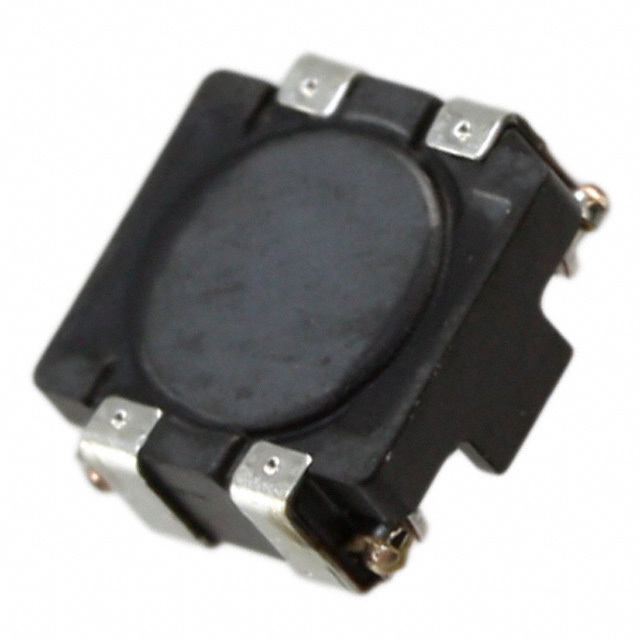

ACM4520-142-2P TDK Corporation
Same model may have multiple batches, images only for reference.

ACM4520-142-2P

Part No ACM4520-142-2P
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 1.7A 2LN 1.4 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency 1.4 kOhm @ 100MHz
Current Rating (Max) 1.7A
DC Resistance (DCR) (Max) 80 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.079" (2.00mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 088901-ACM4520-142-2P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACM4520-142-2P CAD Model

Description

Product Overview

The ACM4520-142-2P offers a robust solution with excellent inductance and low DC resistance, making it a prime choice for energy-efficient designs.

Key Features and Benefits

  • High Inductance: Delivers efficient energy storage capability.
  • Low DC Resistance: Optimized for power-efficient designs.
  • Environmentally Friendly: Manufactured with sustainable processes.

Applications

  • Renewable Energy Systems
  • Battery Management
  • Smart Grids
  • Automated Control Systems
  • High-Frequency Power Supplies
