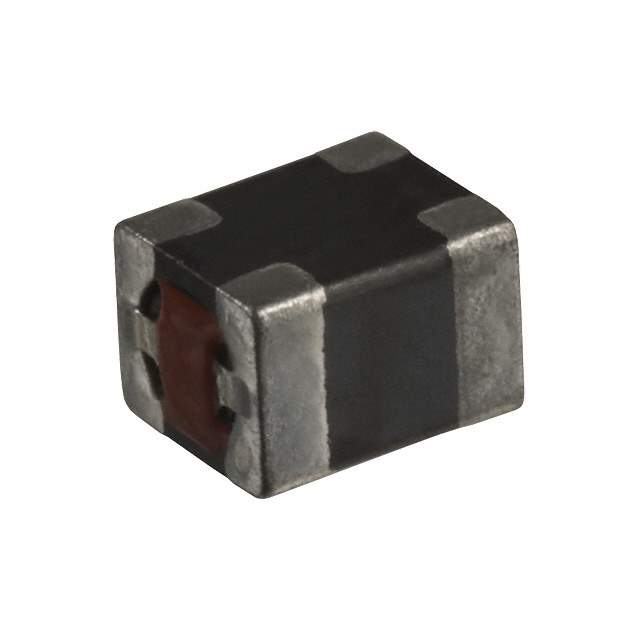

ACM3225-271-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM3225-271-2P-T001

Part No ACM3225-271-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 270 OHM SMD
Datasheet
ACM3225-271-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 270 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1210 (3225 Metric) (4 Leads)
Win Source Part Number 133325-ACM3225-271-2P-T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM3225-271-2P-T001 CAD Model

Description

ACM3225-271-2P-T001

The ACM3225-271-2P-T001 offers a robust solution for electrical circuits, ensuring precision performance in a variety of settings. Its innovative design provides both reliability and efficiency.

  • Applications:
    • Mobile phones
    • Wearable technology
    • Embedded systems
    • Medical devices
  • Features and Benefits:
    • Enhanced thermal stability
    • Low electromagnetic interference
    • Cost-effective with high performance
  • Additional Details:
    • Easy to install and maintain
    • Adaptable to custom engineering needs
