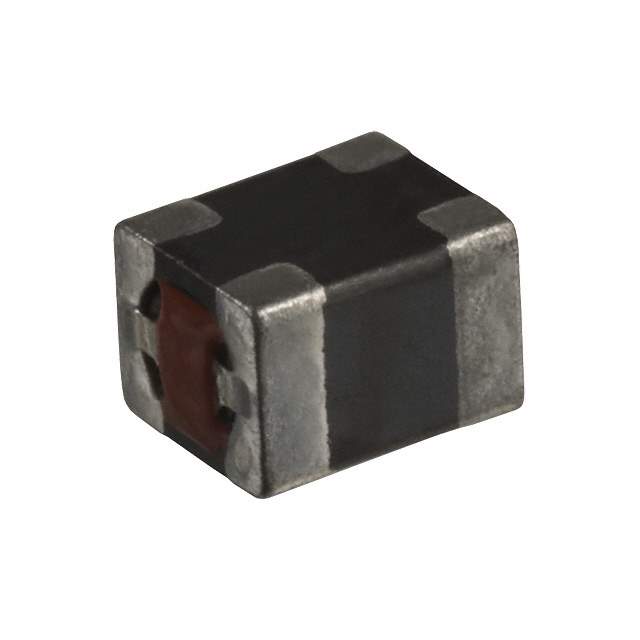

ACM3225-161-2P-T Real Image
Same model may have multiple batches, images only for reference.

ACM3225-161-2P-T

Part No ACM3225-161-2P-T
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 350MA 2LN 160 OHM SMD
Datasheet
ACM3225-161-2P-T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 160 Ohm @ 100MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 200 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1210 (3225 Metric) (4 Leads)
Win Source Part Number 128174-ACM3225-161-2P-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM3225-161-2P-T CAD Model

Description

ACM3225-161-2P-T

The ACM3225-161-2P-T is a specialized component built to support advanced electronic systems with demanding specifications.

Applications

  • Telecommunication Systems
  • Data Processing Centers
  • Advanced Robotics
  • Renewable Energy Systems

Features and Benefits

  • Optimized for high-precision tasks
  • Ensures stability and efficiency
  • Supports a wide range of voltages
  • Designed for high-end applications

Additional Details

It serves as a reliable component in scenarios where precision and stability are critical, enhancing the overall system performance.
