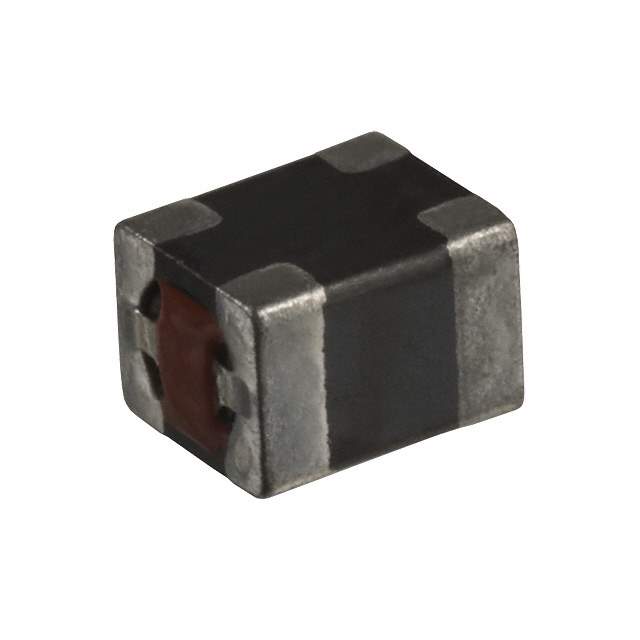

ACM3225-102-2P-T Real Image
Same model may have multiple batches, images only for reference.

ACM3225-102-2P-T

Part No ACM3225-102-2P-T
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 200MA 2LN 1 KOHM SMD
Datasheet
ACM3225-102-2P-T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 500 mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.091" (2.30mm)
Dimension 1210 (3225 Metric) (4 Leads)
Win Source Part Number 107019-ACM3225-102-2P-T
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM3225-102-2P-T CAD Model

Description

Product Description

The ACM3225-102-2P-T component is designed to deliver high performance with added robustness. It meets the complex needs of advanced technological applications, standing as a staple in mission-critical projects.

  • Used in Applications: Advanced Robotics
  • Satellite Communications
  • Renewable Energy Systems

Features and Benefits

  • Engineered for superior resilience in challenging applications
  • Energy-efficient operations reducing power usage
  • Compact form factor optimizing space use

Additional Details: ACM3225-102-2P-T is favored for its exceptional build quality that offers stability and peace of mind in precision-dependent applications.
