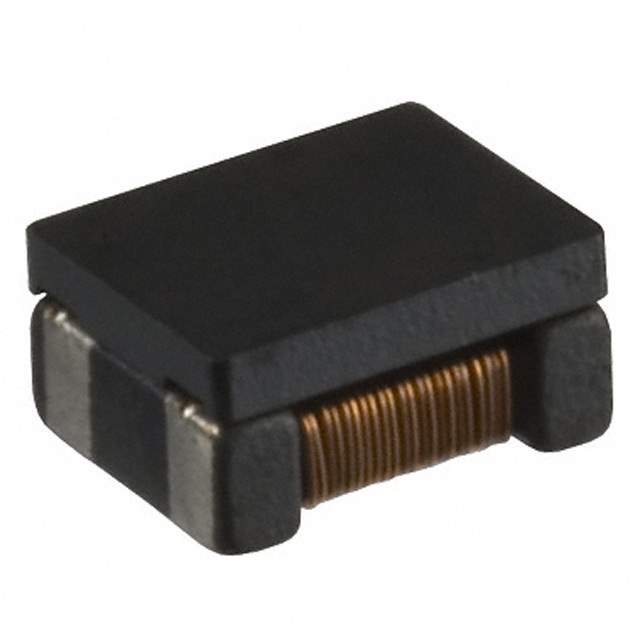

ACM2520-801-3P-T002 TDK Corporation ACM2520-801-3P-T002 Real Image
Same model may have multiple batches, images only for reference.
ACM2520-801-3P-T002 TDK Corporation ACM2520-801-3P-T002 Real Image
ACM2520-801-3P-T002 TDK Corporation ACM2520-801-3P-T002 Real Image
Same model may have multiple batches, images only for reference.

ACM2520-801-3P-T002

Part No ACM2520-801-3P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 150MA 3LN 800 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 3
Impedance @ Frequency 800 Ohm @ 100MHz
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 1.6 Ohm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 6 PC Pad
Win Source Part Number 007854-ACM2520-801-3P-T002
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ACM2520-801-3P-T002 CAD Model

Description

ACM2520-801-3P-T002

The ACM2520-801-3P-T002 is crafted for superior EMI filtering, offering exceptional reliability and stability across various applications.

  • Applications/Projects:
    • Renewable energy systems
    • Automated control units
    • Portable electronics
  • Features and Benefits:
    • Outstanding EMI suppression capabilities
    • Small size for optimal space usage
    • Complies with strict environmental standards
  • Additional Details:
    • Enhanced longevity and performance
    • Compatible with standard assembly processes
