Same model may have multiple batches, images only for reference.

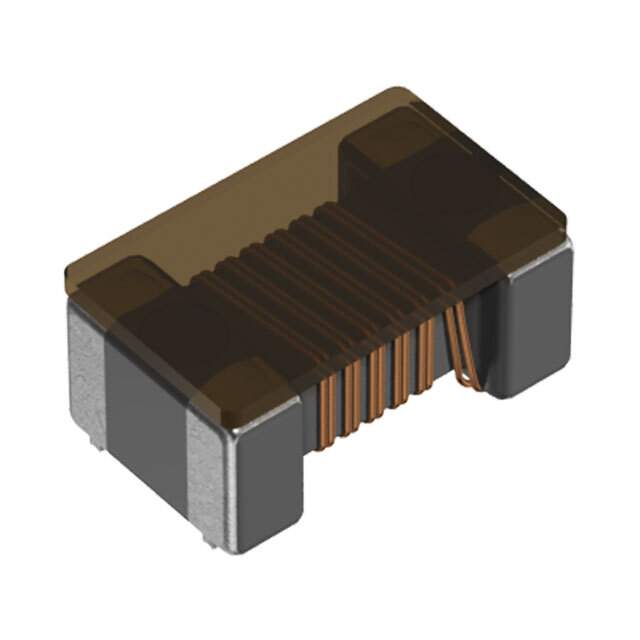

ACM2012E-121-2P-T01 Real Image
Same model may have multiple batches, images only for reference.

ACM2012E-121-2P-T01

Part No ACM2012E-121-2P-T01
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 120 OHM SMD
Datasheet
ACM2012E-121-2P-T01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 450 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.043" (1.10mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 1011604-ACM2012E-121-2P-T01
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian ACM2012E-121-2P-T01 CAD Model

Description

The TDK Corporation signal line filter is an ACM2012E-121-2P-T01 model that is designed to be used in filters.

  • Model: ACM2012E-121-2P-T01
  • Voltage Rating: 50V
  • Current Rating: 300mA
  • Mounting: SMD (SMT) technology
  • Number of Lines: two
  • Impedance: 120 Ohm @ 100MHz
  • DC Resistance (DCR): 450 mOhm
  • Status: active
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TDK Corporation
  • Common Applications: automotive, computers and computer peripherals, communications and networking, consumer electronics, lighting, sensing and instrumentation, and industrial applications
