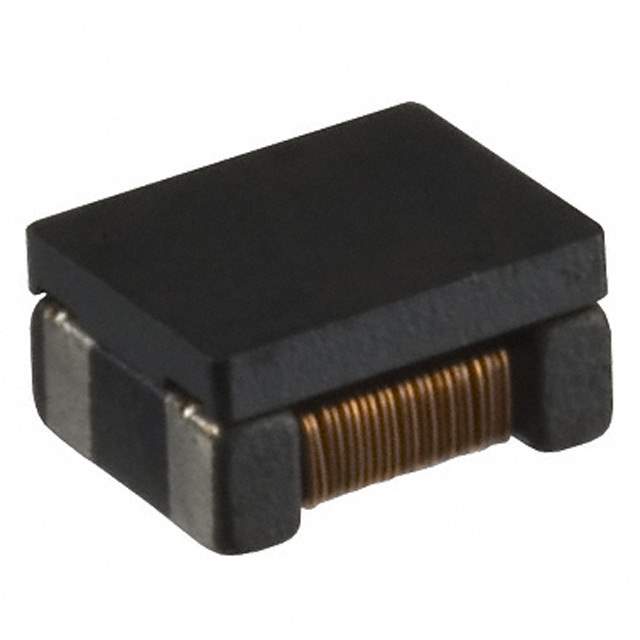

ACM2012-900-2P-T002

Part No ACM2012-900-2P-T002
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 400MA 2LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohm @ 100MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 190 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007847-ACM2012-900-2P-T002
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name ACM
Introduction Date July 04, 2001
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian ACM2012-900-2P-T002 CAD Model

Description

ACM2012-900-2P-T002

The ACM2012-900-2P-T002 is an optimal solution for applications requiring a reliable and compact electronic component. Its design ensures high efficiency and performance, making it a valuable addition to any electronic project where space and reliability are priorities.

  • Power management systems
  • Networking equipment
  • Portable devices
  • Instrumentation

Features and Benefits

  • Superior Reliability: Designed to meet the high standards of modern electronics.
  • Compact Footprint: Minimizes space requirements on the PCB.
  • Efficient Performance: Delivers excellent functionality and dependability.

The ACM2012-900-2P-T002 is well-suited for engineers and designers who require a component that combines performance with space efficiency, ensuring success in their electronic projects.
