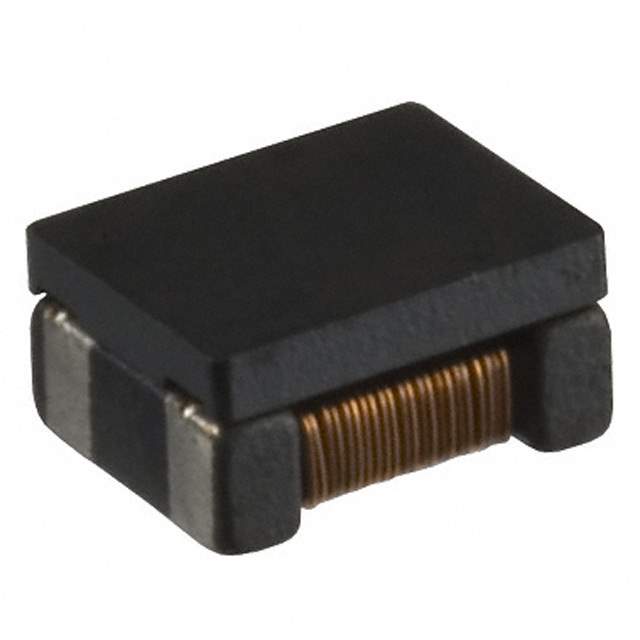

ACM2012-121-2P-T001 Real Image
Same model may have multiple batches, images only for reference.

ACM2012-121-2P-T001

Part No ACM2012-121-2P-T001
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 370MA 2LN 120 OHM SMD
Datasheet
ACM2012-121-2P-T001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 120 Ohm @ 100MHz
Current Rating (Max) 370mA
DC Resistance (DCR) (Max) 220 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Height (Max) 0.051" (1.30mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 007842-ACM2012-121-2P-T001
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACM2012-121-2P-T001 CAD Model

Description

ACM2012-121-2P-T001 - Reliable EMI Suppression Component

The ACM2012-121-2P-T001 is tailored for diverse electronic systems demanding reliable EMI attenuation, guaranteeing enhanced noise suppression across applications.

  • Applications:
    • Smart Home Devices
    • Audio Visual Equipment
    • Automotive Electronics
  • Features and Benefits:
    • Robust construction for longevity and dependability
    • Highly efficient impedance-to-frequency ratio
    • Optimized for high-performance environments
  • Additional Details:
    • Dimensions: 2.0 x 1.2 mm
    • Impedance: 120 Ohms at 100 MHz
    • Current Rating: 100 mA
