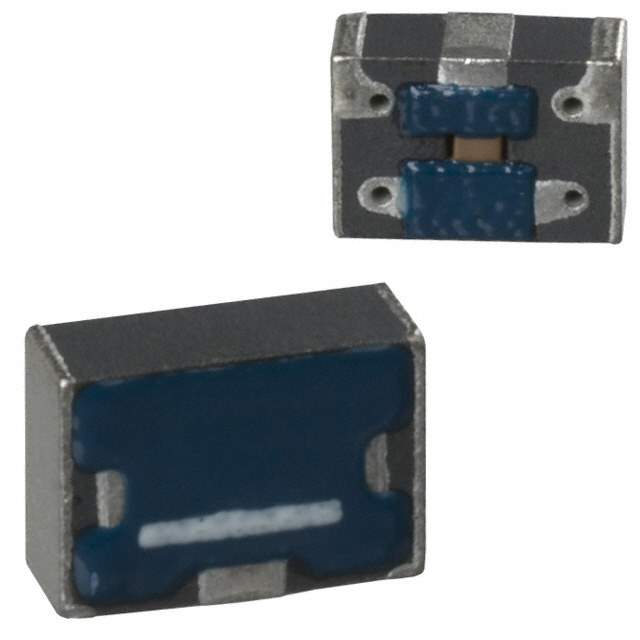

The ACH4518-682-T is a common mode choke from TDK Corporation, designed to suppress common mode noise in high-speed differential transmission lines. It is part of the ACH4518 series, known for its compact size and excellent common mode noise suppression characteristics. This component is crucial in various electronic devices to ensure signal integrity and reduce electromagnetic interference (EMI).

Applications:

• USB lines in computers and peripherals: Protects data transmission from common mode noise.
• HDMI lines in televisions and monitors: Maintains signal integrity for high-resolution video.
• LVDS lines in display panels: Reduces noise in high-speed data transfer.
• Automotive infotainment systems: Filters noise in communication lines.
• Networking equipment (Ethernet): Suppresses noise on network cables.

Features:

• Compact Size: Small footprint (4.5mm x 1.8mm) allows for high-density mounting.
• High Common Mode Impedance: Provides effective suppression of common mode noise.
• Low Differential Mode Impedance: Minimizes signal distortion in differential transmission.
• Excellent Temperature Stability: Maintains performance over a wide temperature range.
• RoHS Compliant: Environmentally friendly, lead-free construction.

Benefits:

• Improved Signal Integrity: Reduces noise and interference, leading to cleaner signals.
• Reduced EMI: Minimizes electromagnetic radiation, improving compliance with regulatory standards.
• Increased System Reliability: Protects sensitive components from noise-induced damage.
• Smaller Device Size: Compact design allows for miniaturization of electronic devices.
• Cost-Effective Solution: Provides a reliable and affordable way to suppress common mode noise.

Additional Details:

The ACH4518-682-T has an impedance of 6800 Ohms at 100 MHz. Its rated current is typically around 100mA to 300mA. The operating temperature range is generally between -40°C to +85°C. This component is surface mountable and is designed for automated assembly processes. It is commonly used with USB 2.0, USB 3.0, and HDMI interfaces.

It is designed to suppress common mode noise without significantly affecting the differential signal. The core material and winding configuration are optimized to achieve high common mode impedance while maintaining low differential mode impedance. This ensures that the desired signal passes through with minimal attenuation, while unwanted noise is effectively filtered out.
