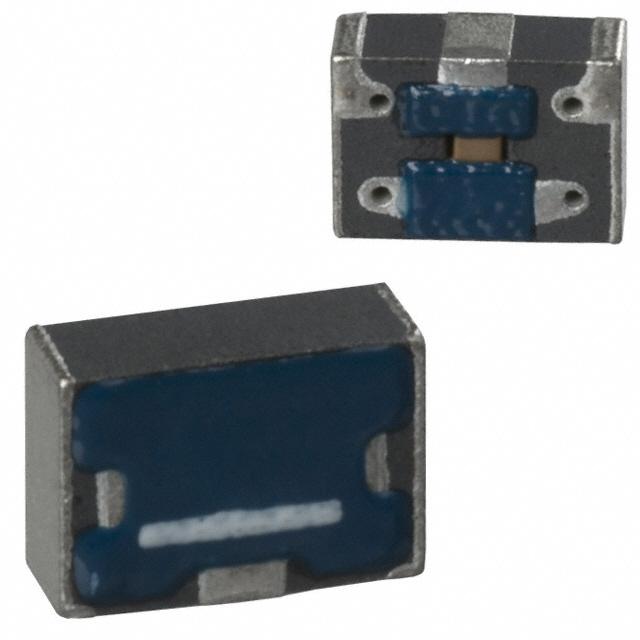

Same model may have multiple batches, images only for reference.
ACH4518-220-TD01 TDK Corporation
Same model may have multiple batches, images only for reference.

ACH4518-220-TD01

Part No ACH4518-220-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
ACH4518-220-TD01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 530MHz to 650MHz
Resistance - Channel (Ohms) 0.06
Current 2A
ESD Protection No
Temperature Range - Operating -40°C to 125°C
Applications General Purpose
Voltage Rating 50V
Mounting SMD (SMT)
Dimension 0.071" L x 0.177" W (1.80mm x 4.50mm)
Height 0.138" (3.50mm)
Win Source Part Number 122823-ACH4518-220-TD01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ACH4518-220-TD01 CAD Model

Description

ACH4518-220-TD01 - High-Current Inductor

Designed for demanding power supply applications, the ACH4518-220-TD01 inductor offers impressive current handling capabilities and exceptional durability.

  • Features:
    • Superior thermal stability
    • High saturation current
    • Robust construction
    • Low profile for compact designs
  • Benefits:
    • Prolongs device lifespan by reducing heat buildup
    • Improves power delivery efficiency
    • Reduces board space demand
  • Applications:
    • Power management systems
    • LED lighting
    • Renewable energy products
    • Industrial automation equipment

The ACH4518-220-TD01 is perfect for engineers and designers striving to achieve efficient power solutions in their advanced systems.
