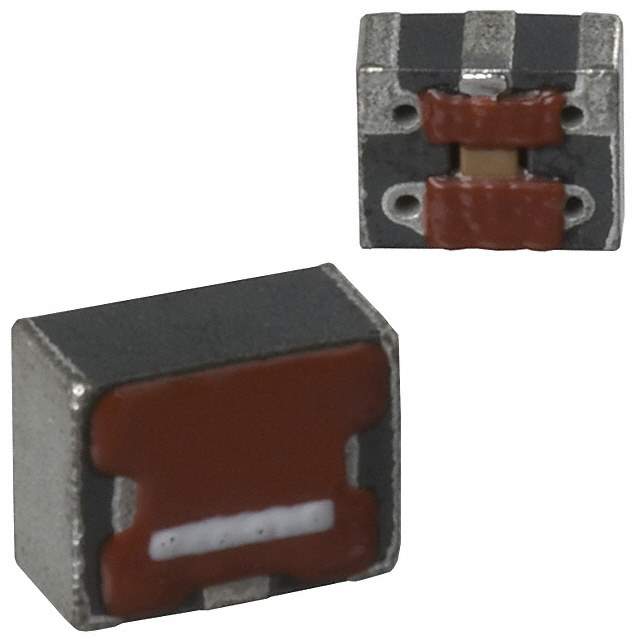

ACF321825-222-TD01

Part No ACF321825-222-TD01
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Not For New Designs
Type Low Pass
Filter Order 3rd
Technology LC (T-Type)
Number of Channels 1
Attenuation Value 25dB @ 45MHz to 105MHz
Resistance - Channel (Ohms) 0.15
Current 300mA
ESD Protection No
Temperature Range - Operating -25°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 20V
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height 0.079" (2.00mm)
Win Source Part Number 137253-ACF321825-222-TD01
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ACF321825-222-TD01 CAD Model

Description

ACF321825-222-TD01

The ACF321825-222-TD01 excels in delivering high efficiency in power-sensitive applications. Its cutting-edge construction ensures optimal performance and longevity, making it invaluable for engineered systems looking for energy efficiency.

  • Applications:
    • Renewable Energy Systems
    • Portable Devices
    • Advanced Computing Solutions
  • Features and Benefits:
    • Optimized for low power consumption.
    • Reduces signal distortion and enhances clarity.
    • Compact and lightweight for easy deployment.
  • Additional Details:
    • Provides long-term stability across varied environments.
    • Preferred in applications requiring compact components.
    • Manufactured in compliance with leading industry standards.
