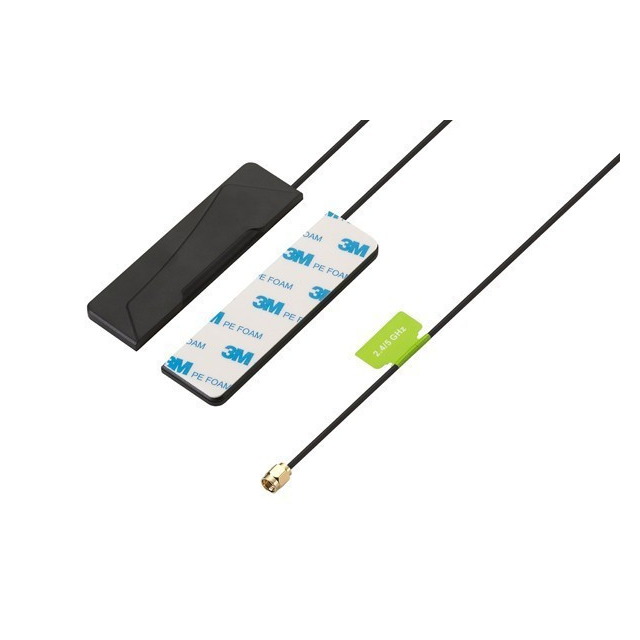

WSA.2458.A.101151 Real Image
Same model may have multiple batches, images only for reference.

WSA.2458.A.101151

Part No WSA.2458.A.101151
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 2.4/5.8GHZ FLT BAR RP-SMA / 2.4GHz, 5.8GHz Wi-Fi, WLAN Flat Bar RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 4.3dBi RP-SMA Male Adhesive
Datasheet
WSA.2458.A.101151 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Series Phoenix
Package Bulk
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.8GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna Type Flat Bar
Number of Bands 2
VSWR 2
Return Loss -10dB
Gain 4.3dBi
Power - Max 2 W
Termination RP-SMA Male
Ingress Protection IP65
Mounting Type Adhesive
Height (Max) 0.303" (7.70mm)
Applications Wi-Fi, WLAN
Base Product Number WSA.2458
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names 931-1487,2266-WSA.2458.A.101151
Standard Package 10
Win Source Part Number 1232275-WSA.2458.A.101151
Ultra Librarian 3D Model Ultra Librarian WSA.2458.A.101151 CAD Model

Description

The Phoenix RP-SMA Male Flat Bar Antenna is a high-performance antenna designed for Wi-Fi and WLAN applications. With a frequency range of 2.4GHz ~ 2.5GHz and 4.9GHz ~ 5.85GHz, this antenna has a return loss of -10dB and a gain of 4.3dBi. The antenna is designed with an adhesive mounting type and has an ingress protection rating of IP65. The antenna is ideal for use in UHF (2GHz ~ 3GHz) and SHF (f > 4GHz) frequency groups. The antenna has a maximum power of 2W and a VSWR of 2. The antenna is packaged in bulk and comes in a standard package of 10.
