Same model may have multiple batches, images only for reference.

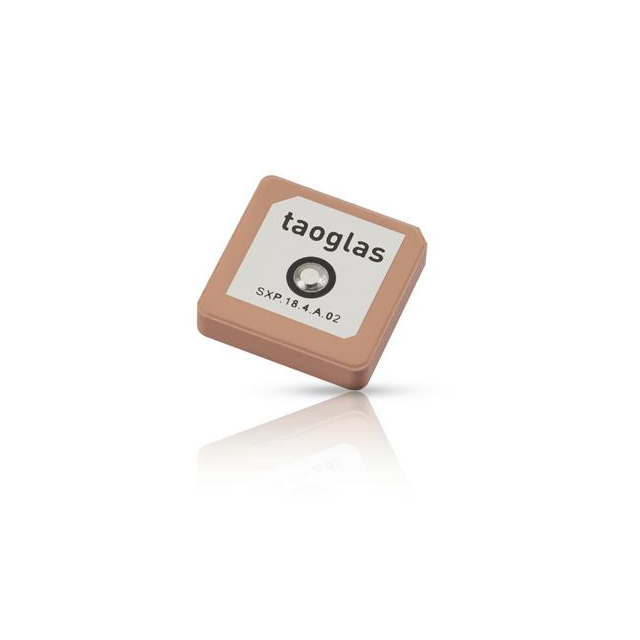

SXP.18.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

SXP.18.4.A.02

Part No SXP.18.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description SDARS 2320 2345MHZ DUAL-BAND XM / 2.32625GHz, 2.3325GHz, 2.33875GHz Ceramic Patch RF Antenna 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz 8dBic, 9.5dBic Pin Adhesive
Datasheet
SXP.18.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tray
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.32625GHz, 2.3325GHz, 2.33875GHz
Frequency Range 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz
Antenna Type Ceramic Patch
Number of Bands 3
Return Loss -10dB
Gain 8dBic, 9.5dBic
Termination Pin
Mounting Type Adhesive
Height (Max) 0.157" (4.00mm)
Base Product Number SXP.18
Other Names 931-1611
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 1236174-SXP.18.4.A.02
Ultra Librarian 3D Model Ultra Librarian SXP.18.4.A.02 CAD Model

Description

The 1236174-SXP.18.4.A.02 RF antenna is designed for UHF frequency range (2GHz ~ 3GHz) with a ceramic patch antenna type.

  • Return Loss: -10dB
  • Gain: 8dBic and 9.5dBic
  • Frequency Range: 2.32GHz ~ 2.345GHz
  • Packaging: tray
  • Standard Package: 25
