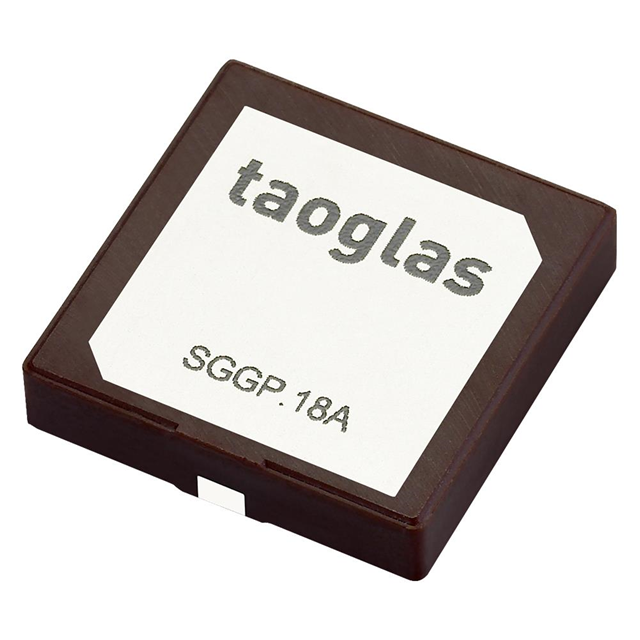

SGGP.18.4.A.08 Real Image
Same model may have multiple batches, images only for reference.

SGGP.18.4.A.08

Part No SGGP.18.4.A.08
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575/1.602GHZ CER PATCH / 1.575GHz, 1.602GHz Galileo, GLONASS, GPS Ceramic Patch RF Antenna 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz 2.86dBi, 3.04dBi Solder Surface Mount
Datasheet
SGGP.18.4.A.08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.602GHz
Frequency Range 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.607GHz
Antenna Type Ceramic Patch
Number of Bands 2
Return Loss -10dB
Gain 2.86dBi, 3.04dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.157" (4.00mm)
Applications Galileo, GLONASS, GPS
Base Product Number SGGP.18
Other Names 931-1528-6,2266-SGGP.18.4.A.08,931-1528-1,931-1528-2
Standard Package 200
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 1236183-SGGP.18.4.A.08
Ultra Librarian 3D Model Ultra Librarian SGGP.18.4.A.08 CAD Model

Description

The SGGP.18.4.A.08 ceramic patch antenna by Taoglas Limited is designed for Galileo, GLONASS, and GPS applications.

  • Frequency Range: 1.574GHz ~ 1.576GHz and 1.598GHz ~ 1.607GHz
  • Application: navigation systems
  • Return Loss: -10dB
  • Gain: 2.86dBi and 3.04dBi
  • Mounting Type: SMD (SMT)
  • Height: 0.157" (4.00mm)
  • Frequency Group: UHF (1GHz ~ 2GHz)
  • Frequency center/band: 1.575GHz and 1.602GHz
  • MSL Level: 3 (168 Hours)
  • REACH: unaffected
