Same model may have multiple batches, images only for reference.

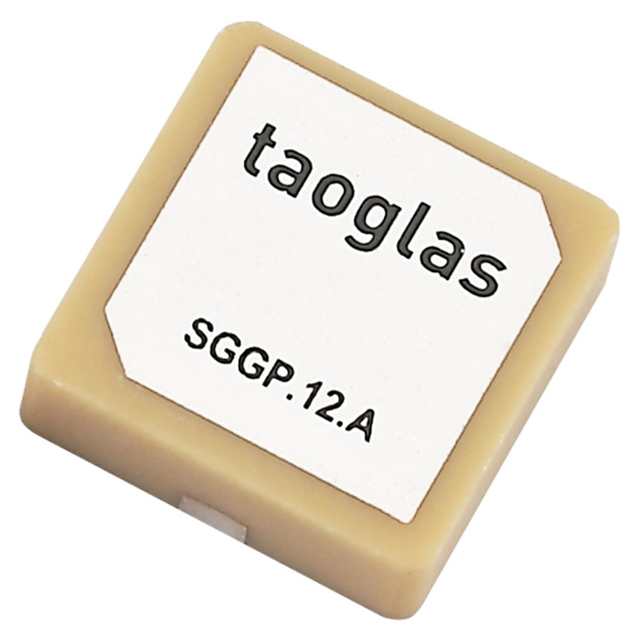

SGGP.12.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

SGGP.12.4.A.02

Part No SGGP.12.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575/1.602GHZ INTEG CHIP / 1.575GHz, 1.602GHz GLONASS, GPS Integrated, Chip RF Antenna 2.9dBi Solder Surface Mount
Datasheet
SGGP.12.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz, 1.602GHz
Antenna Type Integrated, Chip
Number of Bands 2
Return Loss -10dB
Gain 2.9dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.157" (4.00mm)
Applications GLONASS, GPS
Base Product Number SGGP.12
Other Names 931-1427-1,931-1427-2,931-1427-6
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 1236182-SGGP.12.4.A.02
Ultra Librarian 3D Model Ultra Librarian SGGP.12.4.A.02 CAD Model

Description

The Taoglas Limited SGGP.12.4.A.02 is an RF antenna with integrated chip and 2.9dBi gain.

  • Applications: GLONASS and GPS
  • Navigation RF family/standard: navigation RF
  • Win Source Part Number: 1236182-SGGP.12.4.A.02
  • Frequency Range: 1.575GHz to 1.602GHz
  • Frequency Group: UHF (1GHz ~ 2GHz)
