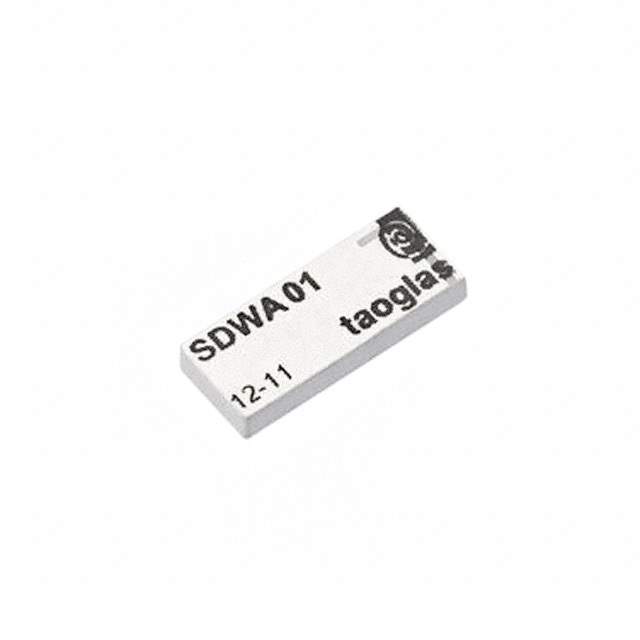

SDWA.01 Real Image
Same model may have multiple batches, images only for reference.

SDWA.01

Part No SDWA.01
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.8GHZ CHIP SLD / 2.4GHz, 5.8GHz WLAN Chip RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz 2.59dBi, 3.38dBi Solder Surface Mount
Datasheet
SDWA.01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Taoglas Limited
Package Tape & Reel
RF Family/Standard WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.8GHz
Frequency Range 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna Type Chip
Number of Bands 2
VSWR 2.5, 3
Gain 2.59dBi, 3.38dBi
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.059" (1.50mm)
Applications WLAN
Other Names 931-1159-6,SDWA01,931-1159-2,931-1159-1
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 1236180-SDWA.01
Ultra Librarian 3D Model Ultra Librarian SDWA.01 CAD Model

Description

This chip antenna is a high-performance antenna designed for WLAN applications.

  • Mounting Type: surface mount device
  • Packaging: tape and reel
  • Frequency Range: 2.4GHz to 2.5GHz and 4.9GHz to 5.85GHz
  • Height: 0.059 inches
  • Frequency Group: UHF and SHF
  • VSWR: 2.5 and 3
  • Gain: 2.59dBi and 3.38dBi respectively
  • Application: WLAN
  • Manufacturer: Taoglas Limited
  • REACH: unaffected
  • HTSUS code: 8529.10.4040
