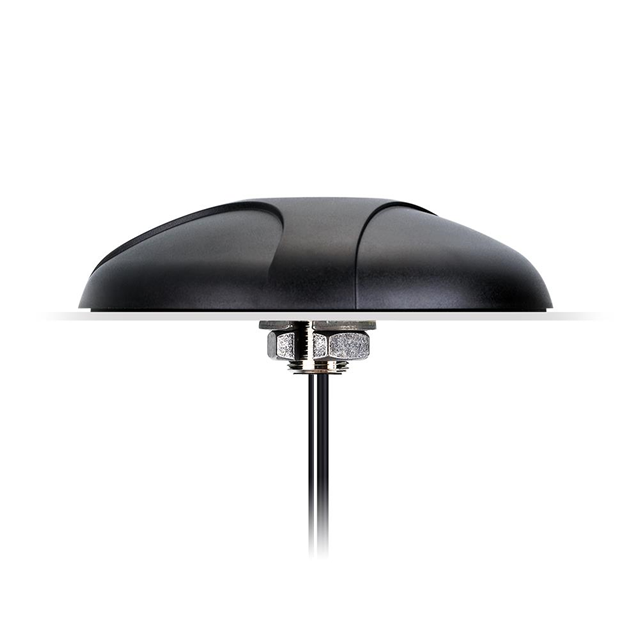

MA650.ST.AB.002.DZ Real Image
Same model may have multiple batches, images only for reference.

MA650.ST.AB.002.DZ

Part No MA650.ST.AB.002.DZ
Manufacturer Taoglas Limited
Catalog RF Antennas
Description SpartanSTAntenna2in1 MA650 Low Profile Screw-Mount (Permanent Mount) 3G/2G/GPS-GLONASS-GALILEO combination antenna / SPARTAN RESISTOR
Datasheet
MA650.ST.AB.002.DZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Taoglas Limited
Series Spartan
Packaging Tray
Frequency Group Wide Band
Frequency (Center/Band) 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz
Frequency Range 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz
Antenna Type Dome
Number of Bands 7
VSWR 1.5
Return Loss -5dB, -10dB
Gain 0.65dBi, 0.16dBi, 3dBic, 4.05dBi, 3.64dBi
Power - Max 5W
Features LNA
Termination Cable (300mm) - Fakra (2)
Ingress Protection IP67, IP69K
Mounting Panel Mount
Height (Maximum) 1.402" (35.60mm)
Applications GLONASS, GPS
Win Source Part Number 785174-MA650.ST.AB.002.DZ
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1
Family Name MA650.ST.AB.002.dz
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MA650.ST.AB.002.DZ CAD Model

Description

The Taoglas Limited MA650.ST.AB.002.DZ antenna is a dome type antenna manufactured by Taoglas Limited.

  • Frequency Range: 824MHz to 960MHz, 1.575GHz to 1.602GHz, and 1.71GHz to 2.17GHz
  • Gain: 0.65dBi, 0.16dBi, 3dBic, 4.05dBi, and 3.64dBi
  • VSWR: 1.5
  • Bands: 7
  • Frequency Group: Wide-band
  • Termination: Cable (300mm) - Fakra (2)
  • Ingress Protection: IP67, IP69K
  • Applications: GLONASS and GPS
  • Power: 5W
  • Popularity: Medium
