Same model may have multiple batches, images only for reference.

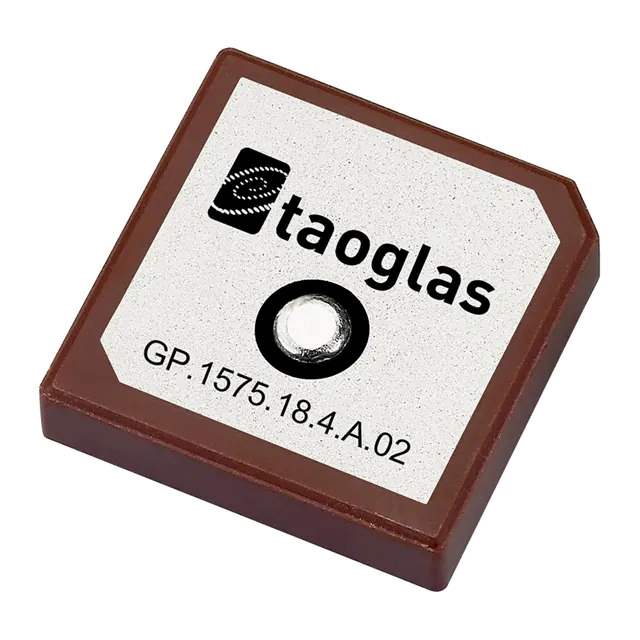

GP.1575.18.4.A.02 Real Image
Same model may have multiple batches, images only for reference.

GP.1575.18.4.A.02

Part No GP.1575.18.4.A.02
Manufacturer Taoglas Limited
Catalog RF Antennas
Description RF ANT 1.575GHZ CER PATCH PIN / 1.575GHz GPS Ceramic Patch RF Antenna 2.5dBic Pin Adhesive
Datasheet
GP.1575.18.4.A.02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Taoglas Limited
Package Tray
Product Status Active
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.575GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Return Loss -10dB
Gain 2.5dBic
Termination Pin
Mounting Type Adhesive
Height (Max) 0.157" (4.00mm)
Applications GPS
Base Product Number GP.1575
Standard Package 200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.9100
California Prop 65 Warning Information
Win Source Part Number 872831-GP.1575.18.4.A.02
Ultra Librarian 3D Model Ultra Librarian GP.1575.18.4.A.02 CAD Model

Description

The GP.1575.18.4.A.02 is a ceramic patch antenna designed for GPS applications from Taoglas Limited.

  • Frequency Group: UHF (1GHz to 2GHz)
  • Center Frequency: 1.575GHz
  • Gain: 2.5dBic
  • VSWR: 1.5
  • Termination: Pin
  • Mounting Type: Adhesive
  • Product Status: Active
