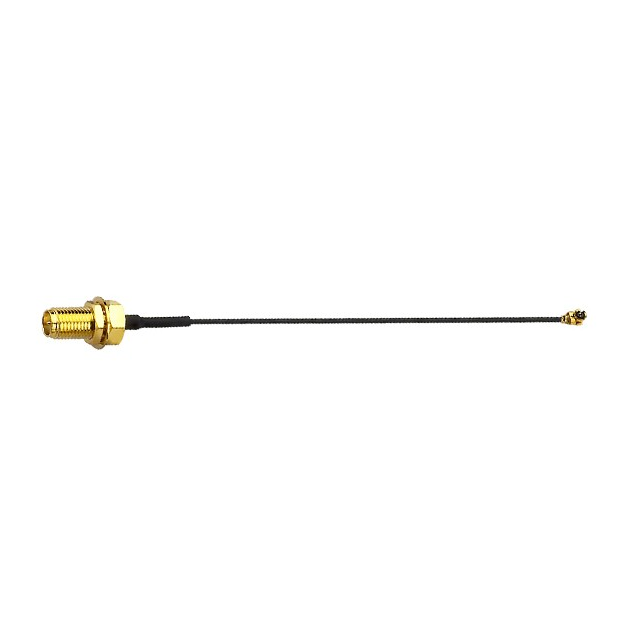

CAB.628 Real Image
Same model may have multiple batches, images only for reference.

CAB.628

Part No CAB.628
Manufacturer Taoglas Limited
Catalog Coaxial Cables (RF)
Description CBL ASSY RPSMA-MHF1 3.740" / Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to RP-SMA 1.13mm OD Coaxial Cable 3.740" (95.00mm)
Datasheet
CAB.628 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Taoglas Limited
Package Bag
Style U.FL (UMCC), IPEX MHF1 to RP-SMA
1st Connector RP-SMA Jack
1st Contact Gender Male
1st Connector Mounting Type Panel Mount
1st Connector Mounting Feature Bulkhead - Front Side Nut
2nd Connector U.FL (UMCC), IPEX MHF1 Plug, Right Angle
2nd Contact Gender Female
2nd Connector Mounting Type Free Hanging (In-Line)
Length 3.740" (95.00mm)
Cable Type 1.13mm OD Coaxial Cable
Overall Impedance 50 Ohms
Frequency - Max 6 GHz
Color Gray
Features Shielded
Temperature Range - Operating 105°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.20.0000
Other Names 931-1219,CAB628
Standard Package 100
Win Source Part Number 1126616-CAB.628
Ultra Librarian 3D Model Ultra Librarian CAB.628 CAD Model

Description

The 1126616-CAB.628 cable assembly is a coaxial cable designed for use in RF applications.

  • Cable Type: 1.13mm OD coaxial cable
  • Length: 3.740 inches (95.00mm)
  • Frequency Range: Up to 6 GHz
  • First Connector: U.FL (UMCC), IPEX MHF1 to RP-SMA jack
  • Second Connector: U.FL (UMCC), IPEX MHF1 plug, right angle
  • Impedance: 50 Ohms
  • Temperature Range: Up to 105 degrees Celsius
  • Package: Bag
  • Standard Package: 100
