Same model may have multiple batches, images only for reference.

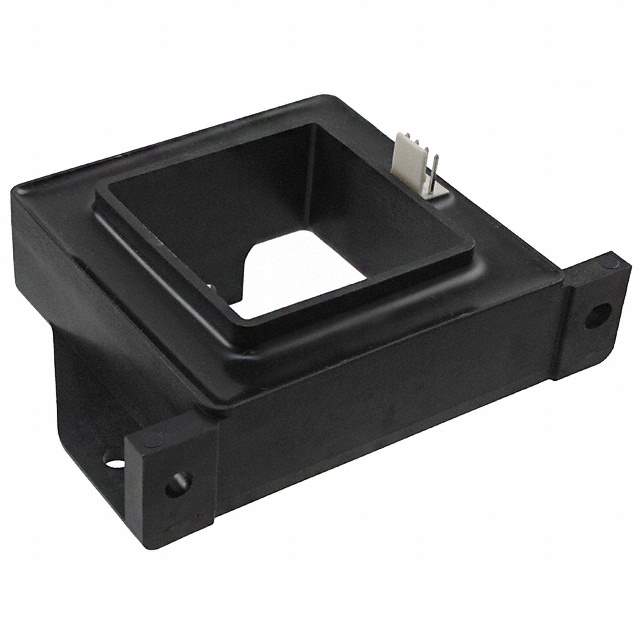

L34S200D15 Real Image
Same model may have multiple batches, images only for reference.

L34S200D15

Part No L34S200D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 200A AC/DC / Current Sensor 200A 1 Channel Hall Effect, Open Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer Tamura
Packaging Bulk
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 200A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±0.5%
Voltage - Supply ±15V
Response Time 5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -30°C ~ 80°C
Polarization Bidirectional
Mounting Panel Mount
Case / Package Module
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number 9-L34S200D15ZY
Standard Package 10
Win Source Part Number 1336573-L34S200D15
Ultra Librarian 3D Model Ultra Librarian L34S200D15 CAD Model

Description

This current sensor is manufactured by Tamura and has a response time of 5µs.

  • Standard Package: 10
  • Mounting Type: Panel Mount
  • Output: ratiometric and voltage
  • Polarization: bidirectional
  • Maximum Current Supply: 25mA
  • Measuring Type: AC/DC
  • Sensor Type: Hall Effect, Open Loop
  • Current-Sensing Capacity: 200A
  • Linearity: ±0.5%
  • Voltage Supply: ±15V
  • Operating Temperature: -30°C to 80°C
  • Status: Obsolete
  • RoHS Compliant: true
