Same model may have multiple batches, images only for reference.

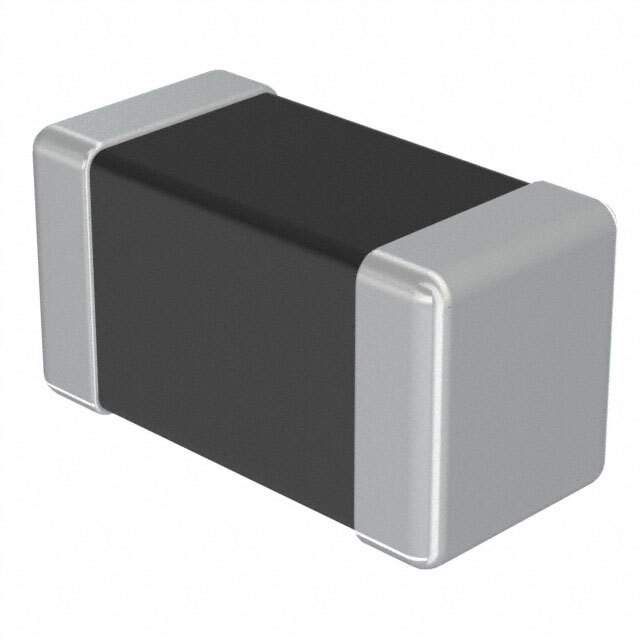

TVS042CG1R3AC-W Real Image
Same model may have multiple batches, images only for reference.

TVS042CG1R3AC-W

Part No TVS042CG1R3AC-W
Manufacturer Taiyo Yuden
Catalog Ceramic Capacitors
Description CAP CER 1.3PF 25V C0G/NP0 01005 / 1.3 pF ±0.05pF 25V Ceramic Capacitor C0G, NP0 01005 (0402 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Taiyo Yuden
Series V
Package Tape & Reel (TR)
Capacitance 1.3 pF
Tolerance ±0.05pF
Voltage - Rated 25V
Temperature Coefficient C0G, NP0
Temperature Range - Operating -55°C ~ 125°C
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 01005 (0402 Metric)
Dimension 0.016" L x 0.008" W (0.40mm x 0.20mm)
Thickness (Max) 0.009" (0.22mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names RV TVS042 CG1R3AC-W,TVS042CG1R3ACW
Standard Package 40,000
Win Source Part Number 1116961-TVS042CG1R3AC-W
Ultra Librarian 3D Model Ultra Librarian TVS042CG1R3AC-W CAD Model

Description

The Taiyo Yuden manufactured TVS042CG1R3AC-W is a ceramic capacitor from the V series.

  • Capacitance: 1.3 pF
  • Voltage Rating: 25V
  • Tolerance: ±0.05pF
  • Temperature Coefficient: C0G, NP0
  • Packaging: Tape and Reel (TR)
  • Mounting: Surface Mount, MLCC
  • Temperature Range: -55°C ~ 125°C
  • Package: 01005 (0402 Metric)
  • Height: 0.009" (0.22mm)
  • Dimension: 0.016" L x 0.008" W (0.40mm x 0.20mm)
  • Application: RF, Microwave, and High-Frequency
