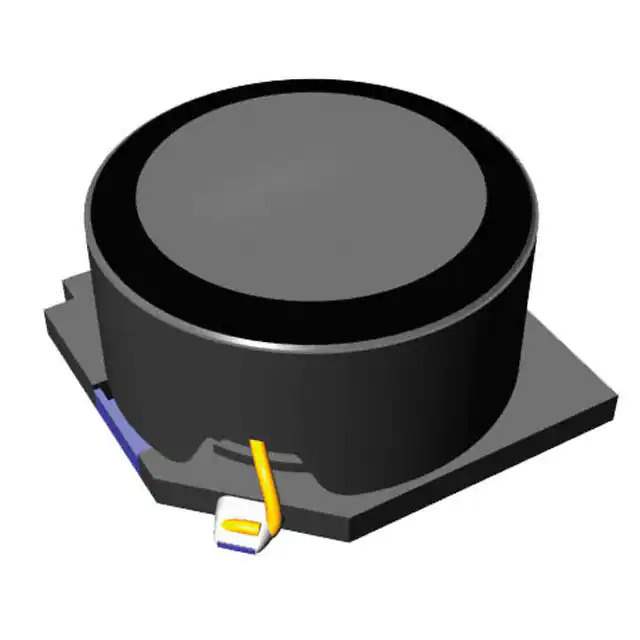

NS12555T220MN Real Image
Same model may have multiple batches, images only for reference.

NS12555T220MN

Part No NS12555T220MN
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 3.81A 35.64 MOHM
Datasheet
NS12555T220MN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Taiyo Yuden
Series NS
Package Tape & Reel
Product Status Not For New Designs
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3.81 A
Current - Saturation (Isat) 3.2A
Shielding Shielded
DC Resistance (DCR) 35.64mOhm Max
Frequency - Self Resonant 13.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.230" (5.85mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 649504-NS12555T220MN
Ultra Librarian 3D Model Ultra Librarian NS12555T220MN CAD Model

Description

The 649504-NS12555T220MN is a fixed inductor from Taiyo Yuden's NS series.

  • Core Type: Drum core
  • Construction: Wirewound
  • Shielding: Shielded
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Height: 0.230" (5.85mm)
  • Mounting: Surface Mount
  • Inductance: 22 µH
  • Tolerance: ±20%
  • DC Resistance: 35.64mOhm maximum
  • Operating Temperature Range: -40°C to 125°C
  • Lifecycle: Not for new designs
