NS10155T220MNV

Name: NS10155T220MNV
Brand: Taiyo Yuden
SKU: 1383066
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NS10155T220MNV
Manufacturer	Taiyo Yuden
Catalog	Fixed Inductors
Description	FIXED IND 22UH 2.8A 51.6MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2.8 A 51.6mOhm Max Nonstandard
Datasheet	NS10155T220MNV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Taiyo Yuden
Series	NS
Package	Tape & Reel
Product Status	Obsolete
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	2.8 A
Current - Saturation (Isat)	3.37A
Shielding	Shielded
DC Resistance (DCR)	51.6mOhm Max
Q @ Freq	-
Frequency - Self Resonant	11.3MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.398" L x 0.398" W (10.10mm x 10.10mm)
Height - Seated (Max)	0.230" (5.85mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	500 pcs
Win Source Part Number	1383066-NS10155T220MNV
Ultra Librarian 3D Model	Ultra Librarian NS10155T220MNV CAD Model

Alternative Products

Description

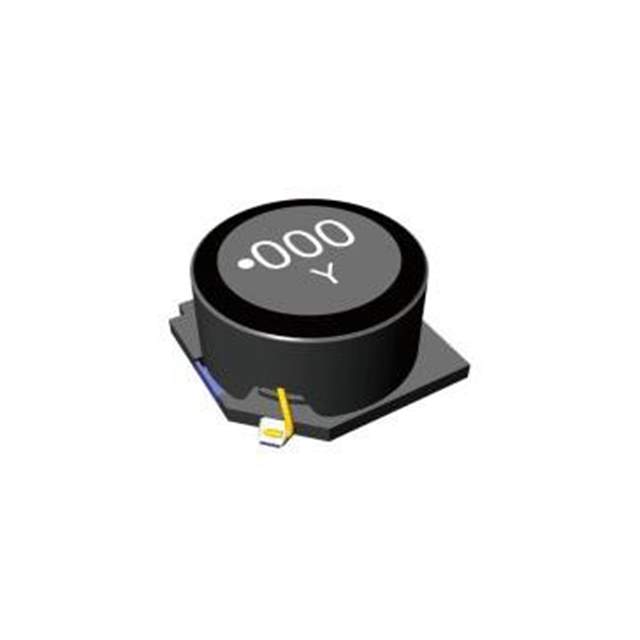

The 1383066-NS10155T220MNV is a drum core, wirewound inductor from the NS series by Taiyo Yuden.

Type: Drum Core, Wirewound
Mounting Type: Surface Mount
Size: 0.398" L x 0.398" W (10.10mm x 10.10mm)
Height: 0.230" (5.85mm)
Inductance: 22 µH
Tolerance: ±20%
DC Resistance (DCR): 51.6mOhm (Max)
Current Rating: 2.8A
Shielding: Shielded
Core Material: Ferrite
Temperature Range: -40°C to 125°C
Rating: AEC-Q200
