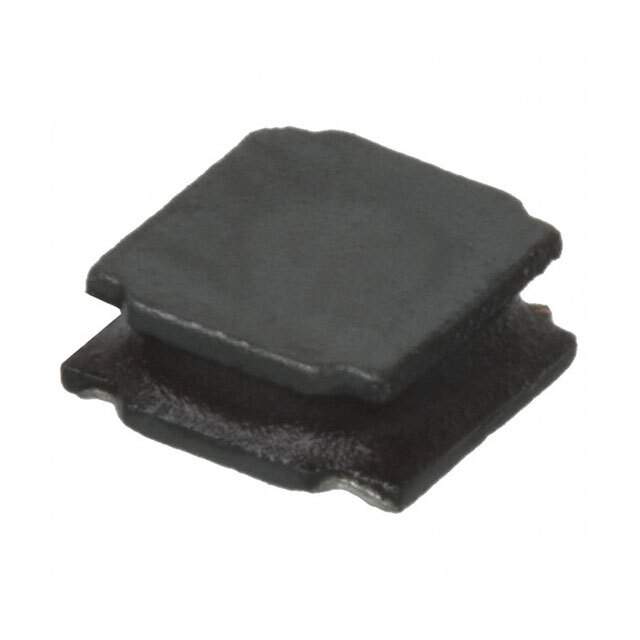

NRV3012T1R5N Real Image
Same model may have multiple batches, images only for reference.

NRV3012T1R5N

Part No NRV3012T1R5N
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 1.5UH 1.61A 90MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 1.61 A 90mOhm Max Nonstandard
Datasheet
NRV3012T1R5N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Taiyo Yuden
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 1.61 A
Current - Saturation (Isat) 2.1A
Shielding Shielded
DC Resistance (DCR) 90mOhm Max
Frequency - Self Resonant 92MHz
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number LM NRV3012T 1R5N,587-5474-6,587-5474-1,587-5474-2
Standard Package 2,000
Win Source Part Number 1329326-NRV3012T1R5N
Ultra Librarian 3D Model Ultra Librarian NRV3012T1R5N CAD Model

Description

The Taiyo Yuden NRV3012T1R5N is a fixed inductor with a drum core, wirewound type and shielded shielding.

  • Package: Non-Standard
  • Size: 0.118” L x 0.118” W (3.00mm x 3.00mm)
  • Inductance: 1.5µH
  • Height: 0.047” (1.20mm)
  • Package: 2,000
  • Mounting: Surface Mount
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Frequency Self-Resonant: 92MHz
  • DC Resistance (DCR): 90mOhm Max
  • Temperature Range: -25°C ~ 120°C
  • Current Rating: 1.61A
  • ROHS3 Compliant: Yes
